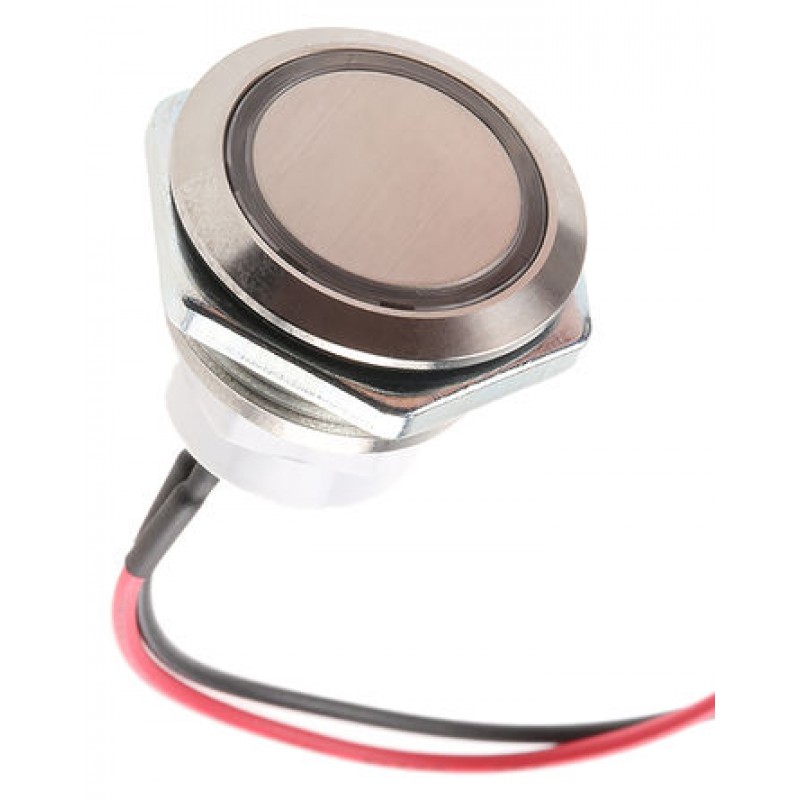

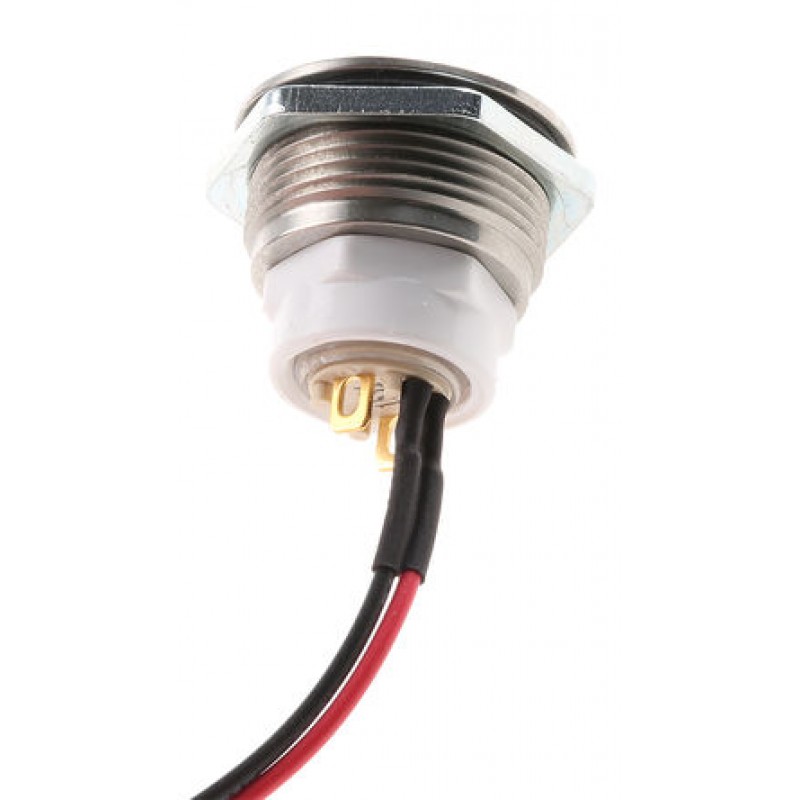

Push Button Switch, IP67, SPST-NO, Panel Mount, Momentary , Illuminated, LED Blue
Product Code: 48M 112B
Availability: In Stock
Availability: In Stock
$24.13
Ex Tax: $24.13
Ex Tax: $24.13
Product Details
48M Series Panel-sealed Metal
Stainless steel housed panel-sealed pushbutton switches with centre-spot and ring-style LED illumination options. Ideal for industrial machinery, outdoor controls and kiosks, security products, food processing equipment and medical products.
Rugged construction with IP67 panel sealing
Gold-plated contacts and terminations
SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc
Single hex nut panel fixing, 19.3mm panel cut-out
Suitable for panel thickness of 1.3 to 3.8mm
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SPST-NO | |
| Mounting Type | Panel Mount | |
| Contact Current Rating | 250 mA @ 12 V dc | |
| Illuminated | Yes | |
| Actuator Colour | Silver | |
| LED Colour | Blue | |
| Terminal Type | Solder | |
| Actuator Type | Button | |
| Case Colour | Stainless Steel | |
| IP Rating | IP67 | |
| Contact Material | Gold Plated | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C |
