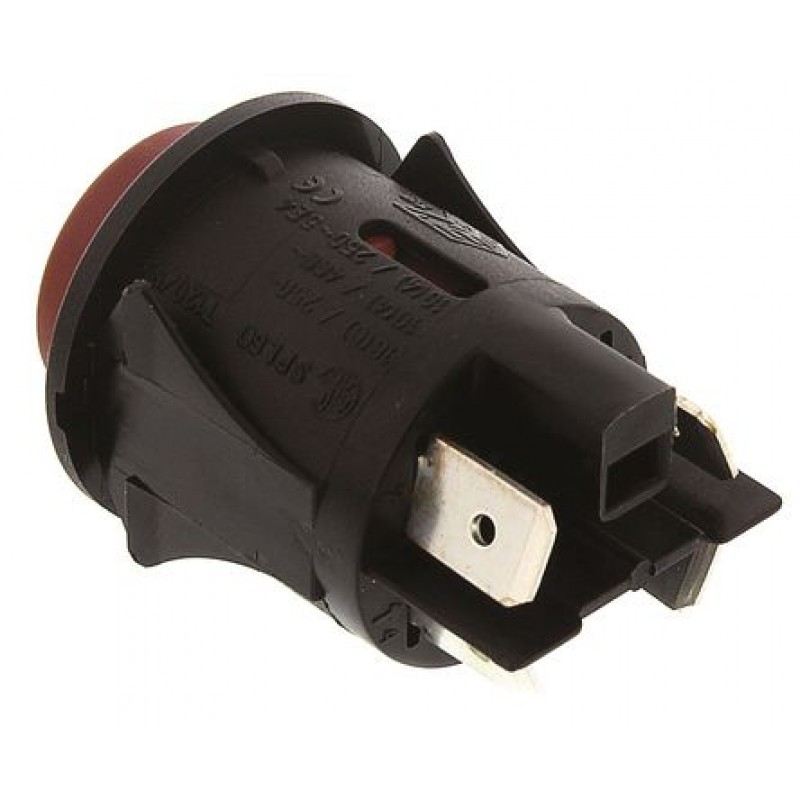

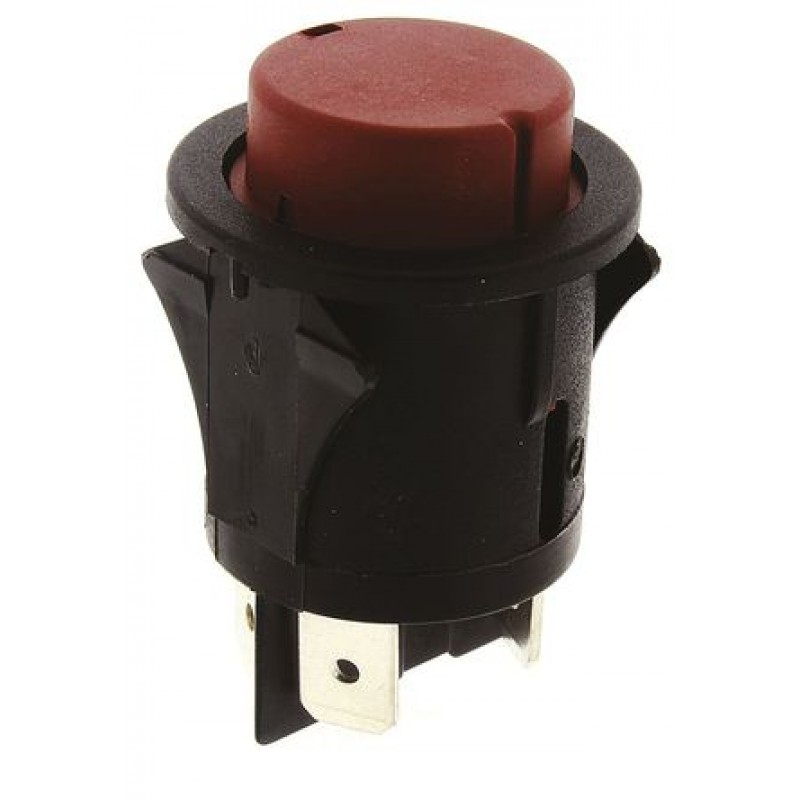

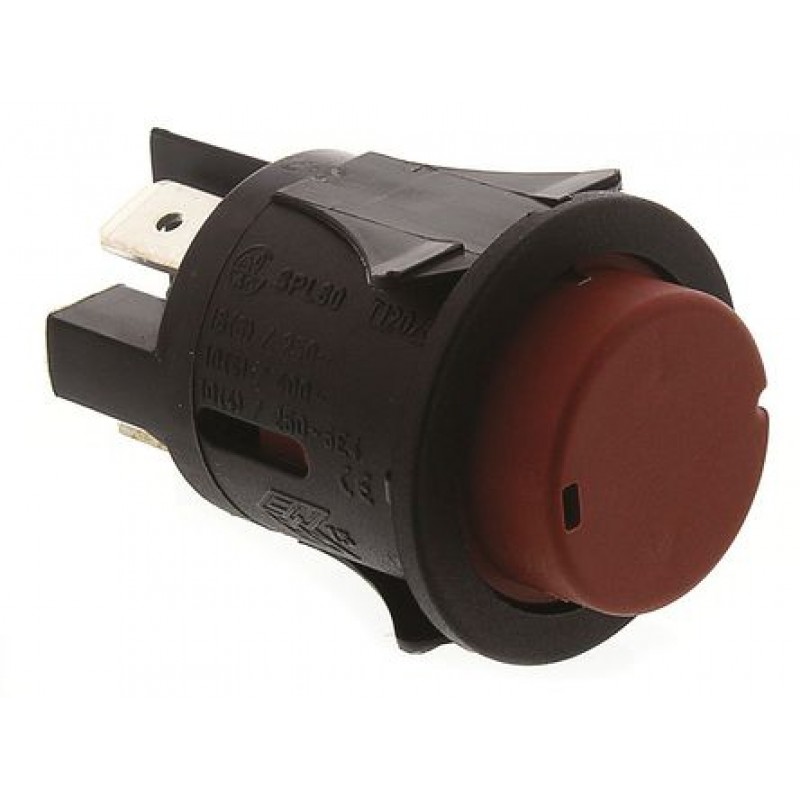

Push Button Switch, DP, Panel Mount, Momentary
Product Code: SP6017C100000
Availability: In Stock
Availability: In Stock
$9.09
Ex Tax: $9.09
Ex Tax: $9.09
Product Details
Raised Illuminated and non-illuminated Pushbutton Switches
Silver contacts
Self-extinguishing thermoplastic UL94V-2
Contact Rating 16A @ 250V a.c. (Approved to 10A @ 250 V)
Mechanical Life: >105 operations
Dimensions: Depth behind panel 34mm, max. panel thickness 2.5, panel cut-out 25mm
Note
Coloured caps for non-illuminated switches must be ordered separately
22-30 mm diameter cut out Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | DP | |
| Mounting Type | Panel Mount | |
| Contact Current Rating | 16 A @ 250 V ac | |
| Actuator Colour | Red | |
| Terminal Type | Tab | |
| Actuator Shape | Round | |
| Actuator Type | Button |
