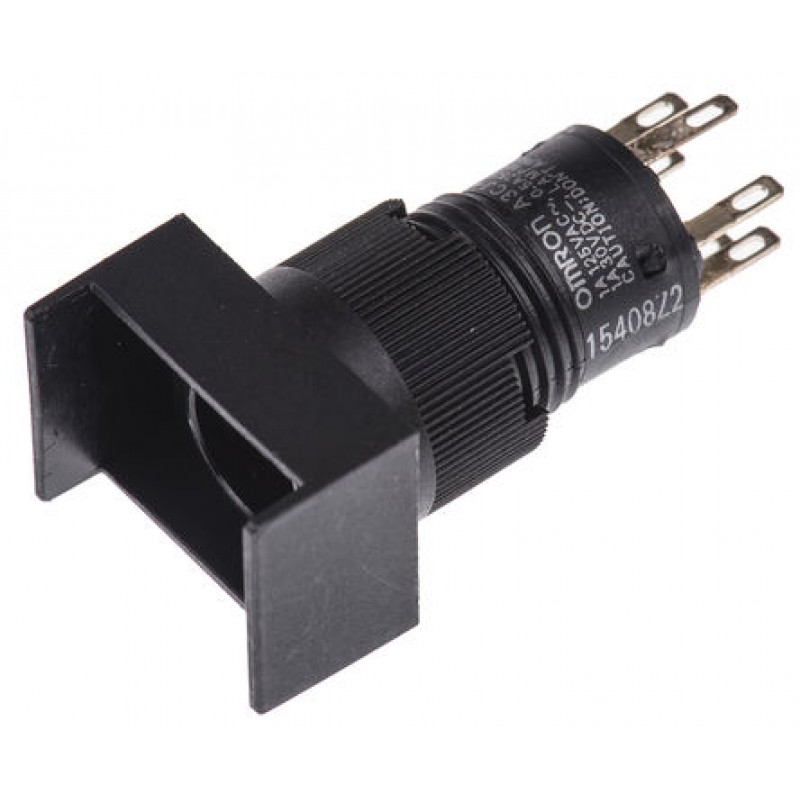

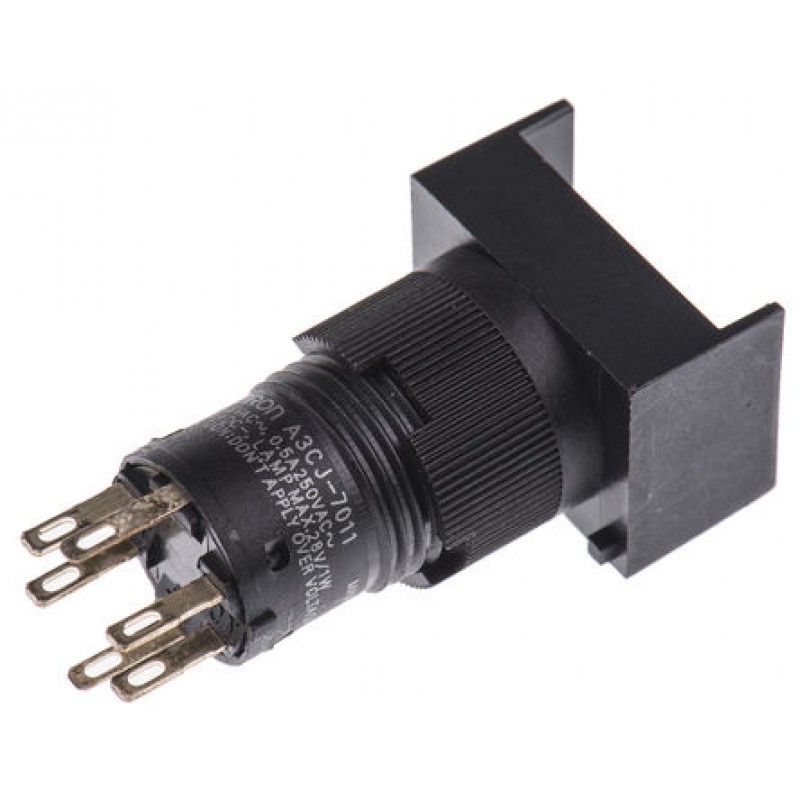

Push Button Switch, IP40, 12mm, SPST-NO/NC, Panel Mount, Momentary , Illuminated
Product Code: 3CJ7011
Availability: In Stock
Availability: In Stock
$14.15
Ex Tax: $14.15
Ex Tax: $14.15
Product Details
Panel Mounting Illuminated Switches and Indicators
Each switch has two sets of SPST contacts, one normally open and one normally closed, permitting a wide variety of switching functions to be carried out
A complete assembly requires a switch unit (or indicator), a lens and a lamp, each of which must be ordered separately
The lenses contain a removable legend plate, which may be marked by the user
Lamps can be changed from front of panel
Matching indicators
| Contact rating | 1A @ 30Vdc, 1A @ 125Vac, 0.5A @ 250Vac |
| Contact resistance | ≤ 100mΩ |
| Insulation resistance | ≥100MΩ 500Vdc |
| Mechanical life (operations) | Momentary: 106, Latching: 105 |
| Operating temperature | -10 to 55°C |
| Dimensions (mm) | ||
| Rectangular | Round | |
| Bezel size | 18 x 14 | 14 dia. |
| Projection beyond panel | 9.5 | 9.5 |
| Depth behind panel | 26.5 | 26.5 |
| Max. panel thickness | 3.2 | 3.2 |
| Mounting hole diameter | 12.0 | 12.0 |
Approvals
UL, CSA
12 - 15mm Diameter Cut Out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SPST-NO/NC | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Size | 12mm | |
| Panel Cut Out Diameter | 12mm | |
| Contact Current Rating | 500 mA @ 250 V ac | |
| Illuminated | Yes | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -10°C | |
| IP Rating | IP40 | |
| Operating Temperature Range | -10 → +55°C | |
| Actuator Type | Button | |
| Terminal Type | Solder | |
| Actuator Shape | Rectangular |
