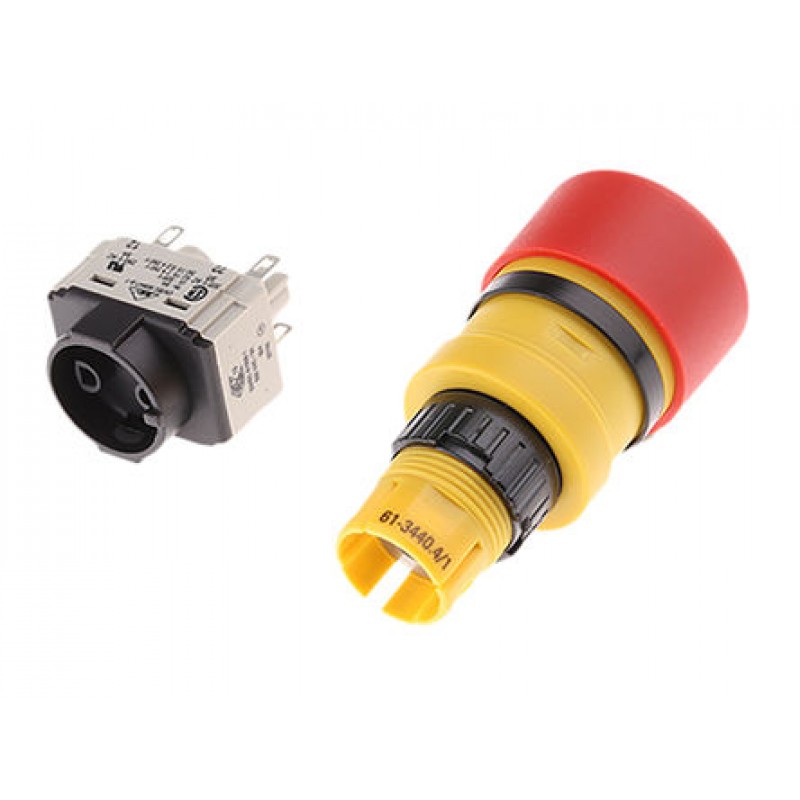

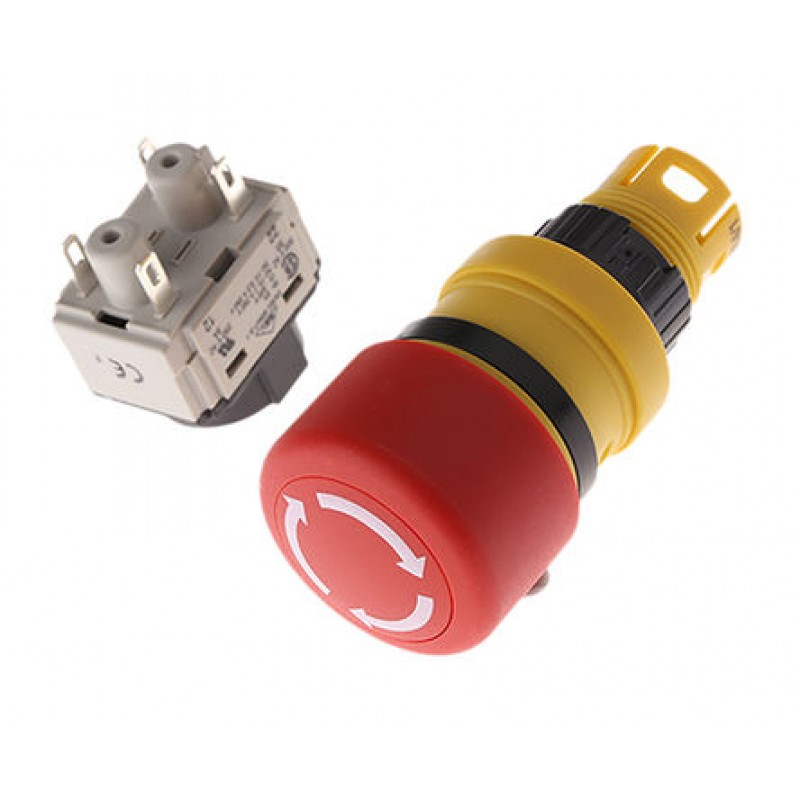

Push Button Switch, IP65, 2NC, Panel Mount, Maintained, Twist to Release, Arrows (symbol)
   0 reviews  |  Write a review
Product Code: W1 61-8755.17
Availability: In Stock
$37.64
Ex Tax: $37.64

Product Details

The  Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stop. Available in raised or flush mount.

Arrow marking showing twist to unlock release
Front protection IP65
Switching; 5A @ 250Vac
Slow make switching element
16mm mounting hole

Standards

DIN EN ISO 13850; EN 60205-1








Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Switch Operation Maintained, Twist to Release
Contact Configuration 2NC
Mounting Type Panel Mount
Panel Cut Out Diameter 16mm
Contact Current Rating 5 A @ 250 V ac
Actuator Colour Red
Maximum Operating Temperature +55°C
Minimum Operating Temperature -20°C
IP Rating IP65
Operating Temperature Range -20 → +55°C
Actuator Type Mushroom Button
Terminal Type Solder
Actuator Shape Round
Legend Arrows (symbol)
Contact Material Silver
Case Colour Yellow
