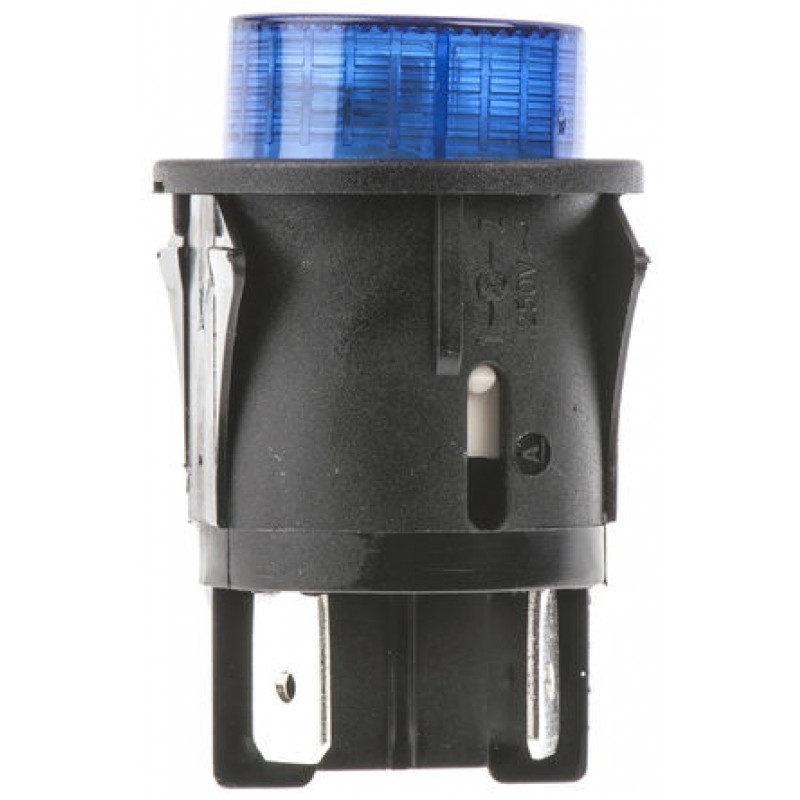

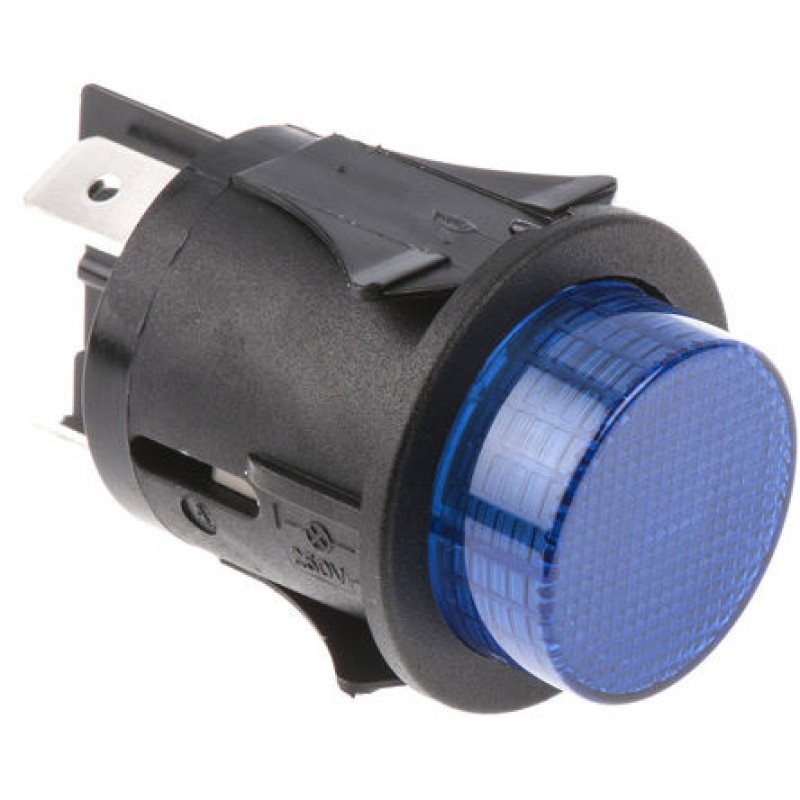

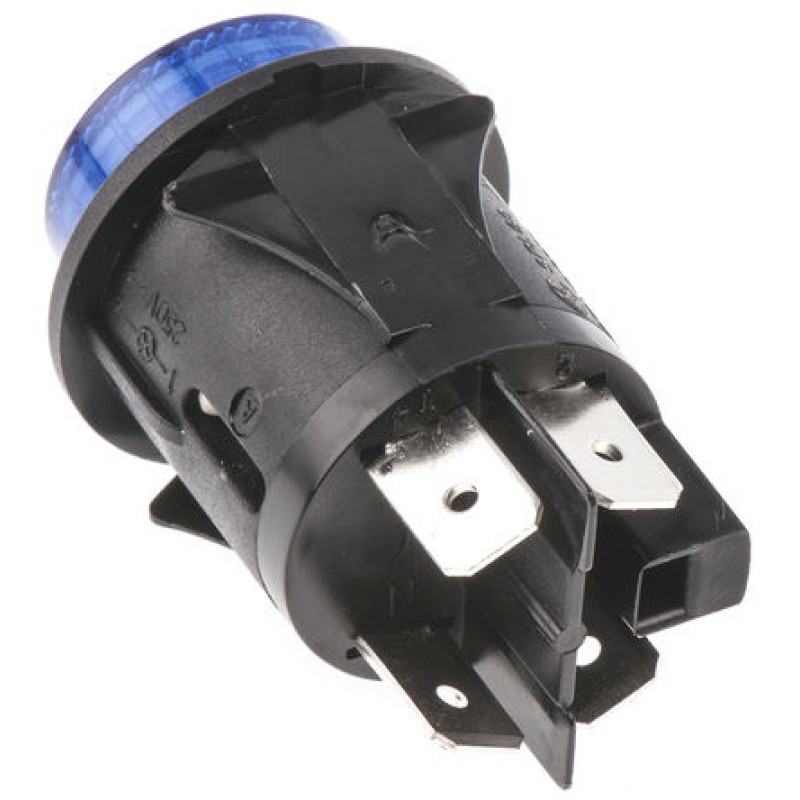

Push Button Switch, 25mm, DPST-NO, Panel Mount, Latching , Illuminated
Product Code: P6018C1F0000
Availability: In Stock
Availability: In Stock
$8.15
Ex Tax: $8.15
Ex Tax: $8.15
Product Details
Raised Illuminated and non-illuminated Pushbutton Switches
Silver contacts
Self-extinguishing thermoplastic UL94V-2
Contact Rating 16A @ 250V a.c. (Approved to 10A @ 250 V)
Mechanical Life: >105 operations
Dimensions: Depth behind panel 34mm, max. panel thickness 2.5, panel cut-out 25mm
Note
Coloured caps for non-illuminated switches must be ordered separately
22-30 mm diameter cut out Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Latching | |
| Contact Configuration | DPST-NO | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Size | 25mm | |
| Panel Cut Out Diameter | 25mm | |
| Contact Current Rating | 10 A @ 400 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Blue | |
| Contact Material | Silver | |
| Terminal Type | Tab | |
| Actuator Type | Button | |
| Case Colour | Black |
