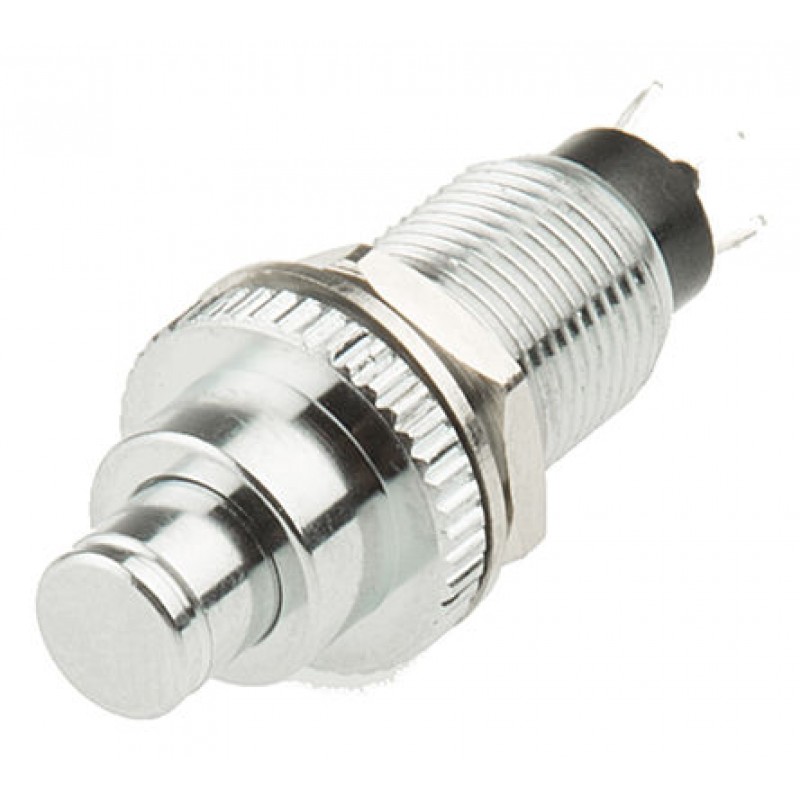

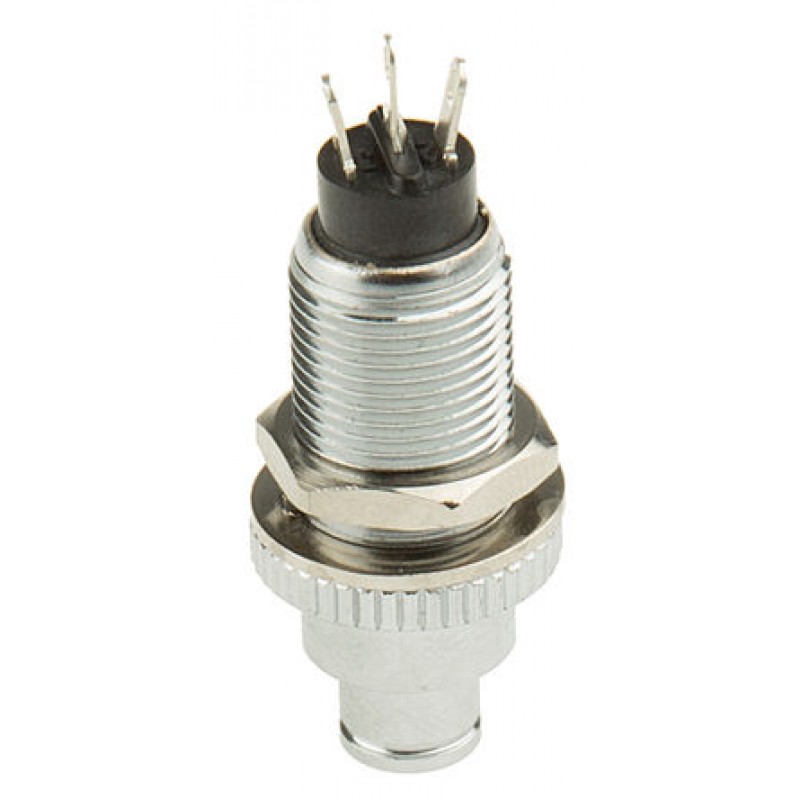

Push Button Switch, 10.2mm, NO/NC, Panel Mount, On-(On)
Product Code: 17502.21
Availability: In Stock
Availability: In Stock
$23.19
Ex Tax: $23.19
Ex Tax: $23.19
Product Details
DJET miniature pushbuttons
Range of standard or sealed pushbutton switches.
May be used with peak currents.
Excellent vibration and shock resistance.
Highly stable contact resistance.
| Function: | quick-breaking ON-MOM single-pole changeover switch |
| Breaking capacity: | 220 V a.c./1.5 A-12 V d.c./4.5 A |
| Insulation resistance: | 105 MΩ |
| Contact material | - tropical: or - standard: silver |
| Mechanical service life: | 100,000 operations min. |
| Operating temperature: | -40°C to +85°C |
| Protection index: | IP 67 watertight version only |
| Stock | |||
| no. | Watertight | function | Finish |
| Tropical version Ø 10 mm | |||
| 174-4054 | Yes | ON - MOM | Mat chrome |
| 174-4060 | Yes | ON - MOM | Mat black |
| 174-4076 | No | ON - MOM | Chrome |
| 174-4082 | No | ON - MOM | Mat black |
| Standard version Ø 10 mm | |||
| 115-6053 | Yes | ON - MOM | Mat chrome |
| 174-4098 | No | ON - MOM | Chrome |
| Standard version Ø 6.35 mm | |||
| 179-1252 | No | ON - MOM | Chrome |
4 to 7mm Diameter Cut Out - Low Voltage - Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | On-(On) | |
| Contact Configuration | NO/NC | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Size | 10.2mm | |
| Panel Cut Out Diameter | 10.2mm | |
| Contact Current Rating | 500 mA @ 12 V | |
| Actuator Colour | Silver | |
| Actuator Shape | Round | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver | |
| Operating Temperature Range | -40 → +85°C | |
| Actuator Type | Button | |
| Terminal Type | Solder | |
| Maximum Operating Temperature | +85°C |
