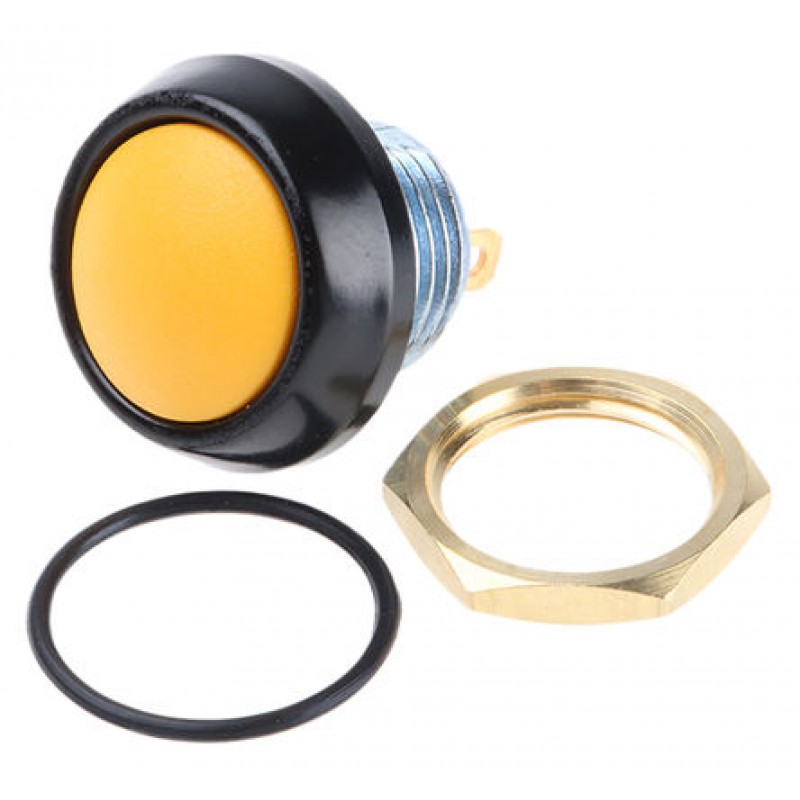

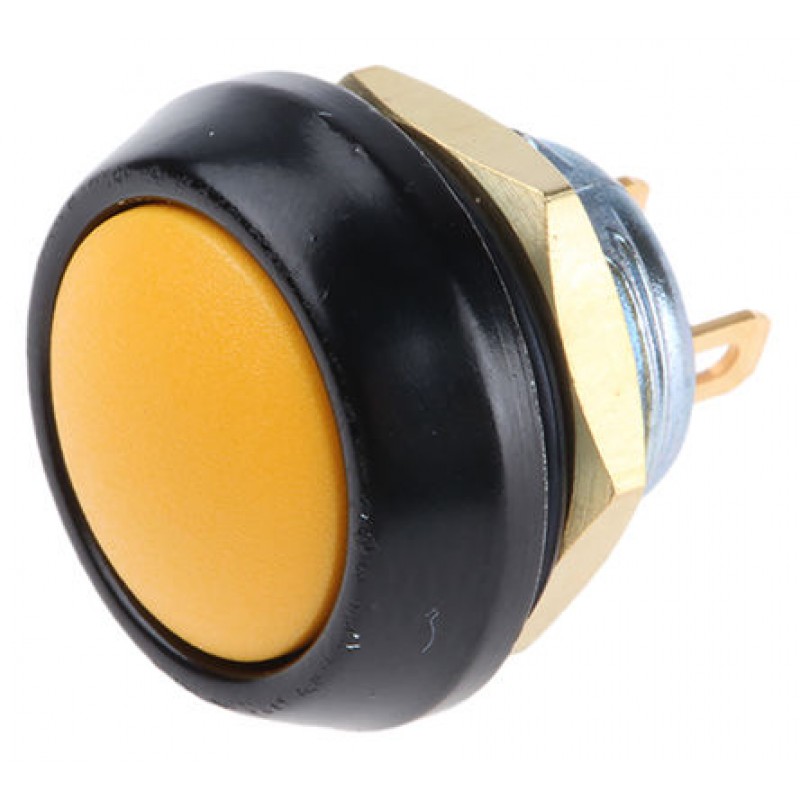

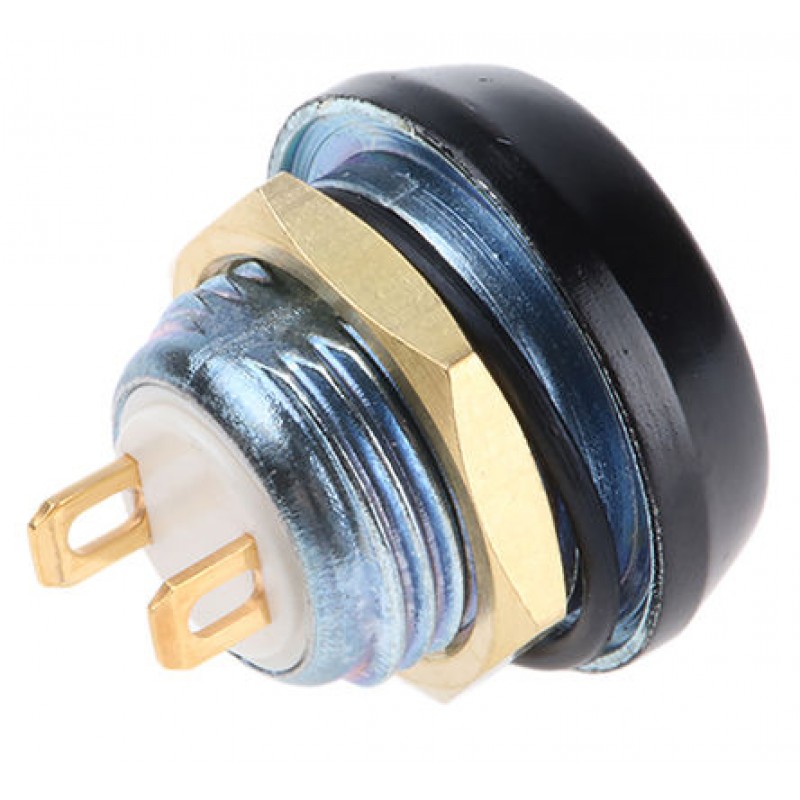

Push Button Switch, IP67, NO, Panel Mount, Momentary
Product Code: 59-115
Availability: In Stock
Availability: In Stock
$11.39
Ex Tax: $11.39
Ex Tax: $11.39
Product Details
Miniature Sealed Pushbutton Switches (SPNO)
The 59 series has been designed to offer a rugged, momentary action, miniature pushbutton suitable for use in most applications including harsh environments. They are IP67 panel sealed and have a choice of either a non-spark zinc alloy or a hard wearing moulded PBT body material. Users also have the option of non-illuminated and status illuminated versions in various colours.
Non-spark material
Wide temperature range
Panel sealed to IP67
High environmental specifications
Gold plated contacts
Status illumination
| Contact Rating | 400mA @ 32Vac |
| 100mA @ 50Vdc | |
| Contact Material | Gold plated palladium nickel |
| Contact Resistance | 50mΩ |
| Temperature Range | Metal Body; -40 - +125°C |
| Plastic Body; -40 - +85°C | |
| Illuminated; -35 - +85°C | |
| Electrical Life | 105 operations |
| Max. Panel Thickness | 3mm |
| Bezel Diameter | 17.45mm |
| Mounting Hole Diameter | 13.6mm |
12-15 mm diameter cut out - Low Voltage - Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | NO | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Diameter | 13.6mm | |
| Contact Current Rating | 400 mA @ 32 V ac | |
| Illuminated | No | |
| Actuator Colour | Yellow | |
| Terminal Type | Solder | |
| Actuator Type | Button | |
| Operating Temperature Range | -40 → +125°C | |
| IP Rating | IP67 | |
| Contact Material | Gold Plated Nickel | |
| Actuator Shape | Round | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C |
