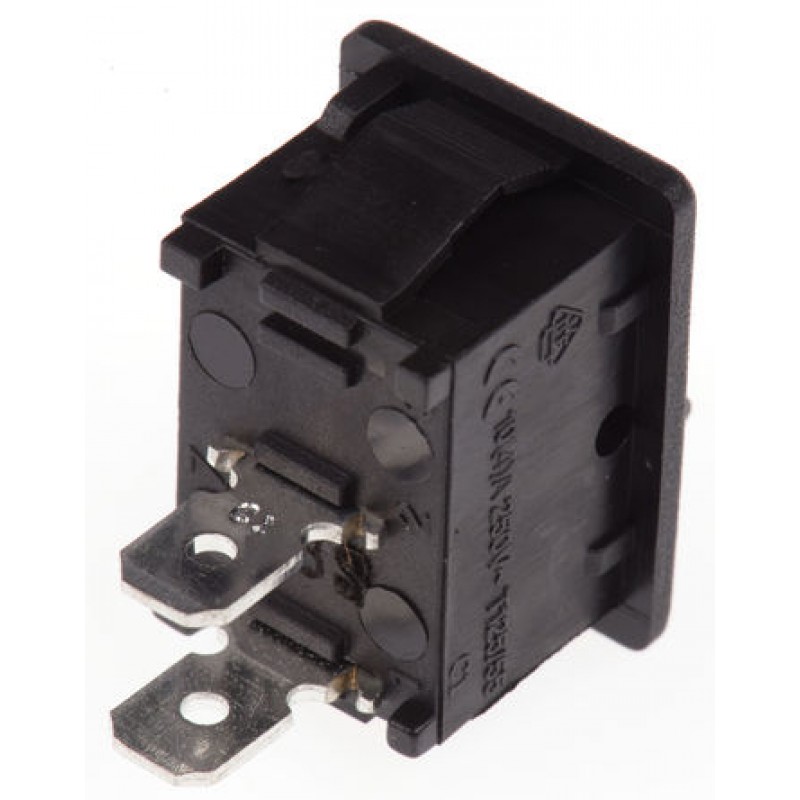

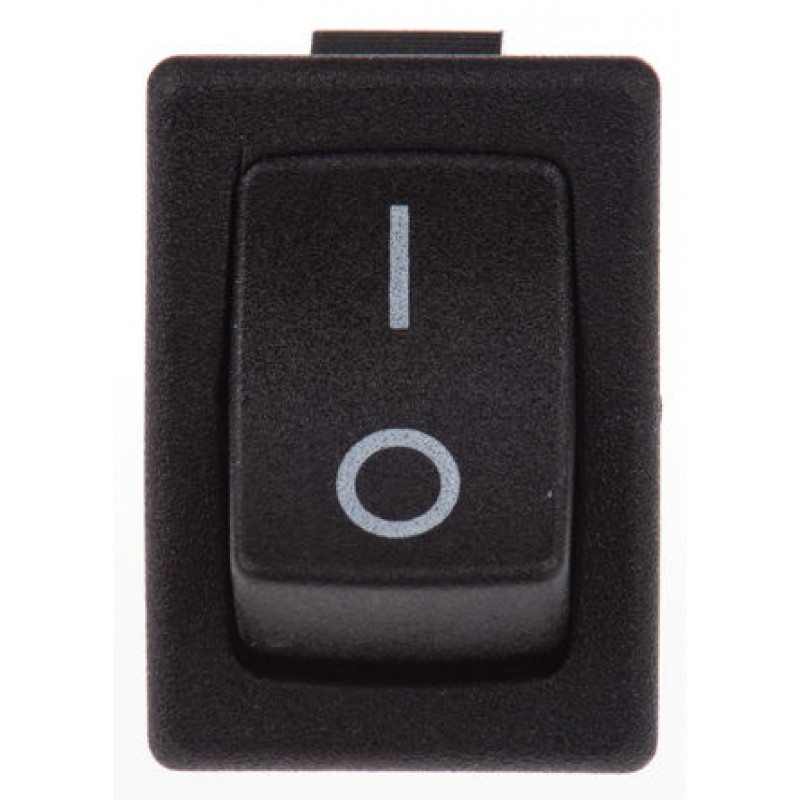

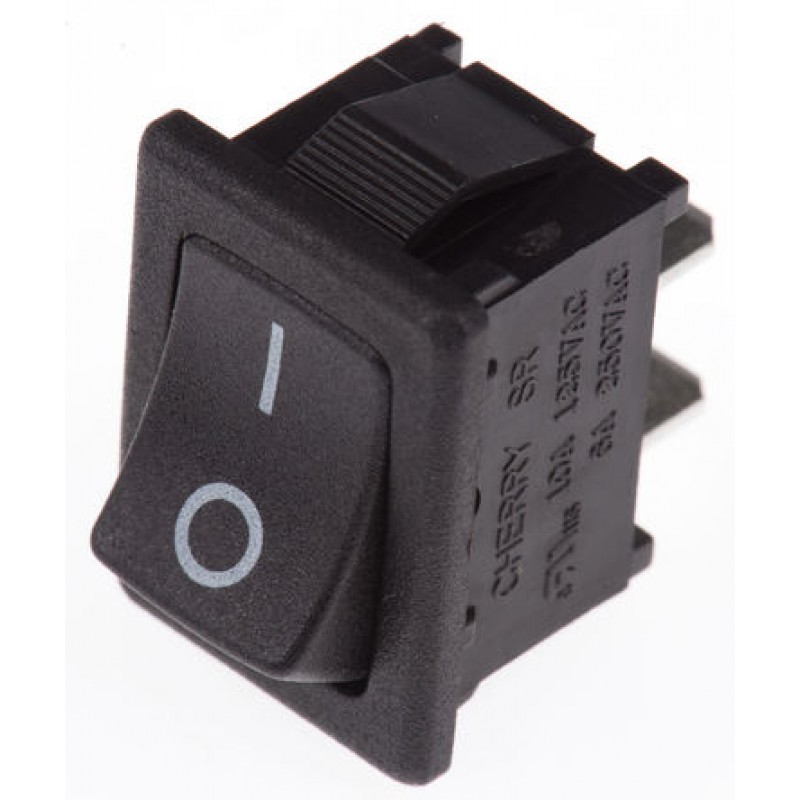

Black SPST Rocker Switch, On-Off, 10 A @ 250 V ac +65°C -20°C
   0 reviews  |  Write a review
Product Code: SRB22A2FBBNN
Availability: In Stock
$6.46
Ex Tax: $6.46

Product Details

The SR series is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.

Durable silver alloy contacts for long life at heavy loads
Industry-standard mounting dimensions
Mechanical life: min. 100,000 operations

Approvals

VDE; UL; CSA



19.0 to 19.4mm Height Panel Cut Out




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Contact Configuration SPST
Switch Operation On-Off
Contact Current Rating 10 A @ 250 V ac
Actuator Colour Black
Mounting Type Panel
Terminal Type Quick Connect
Contact Material Silver Plated Copper
Maximum Operating Temperature +65°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +65°C
Contact Resistance 20mΩ
Mechanical Life 100000Operations
