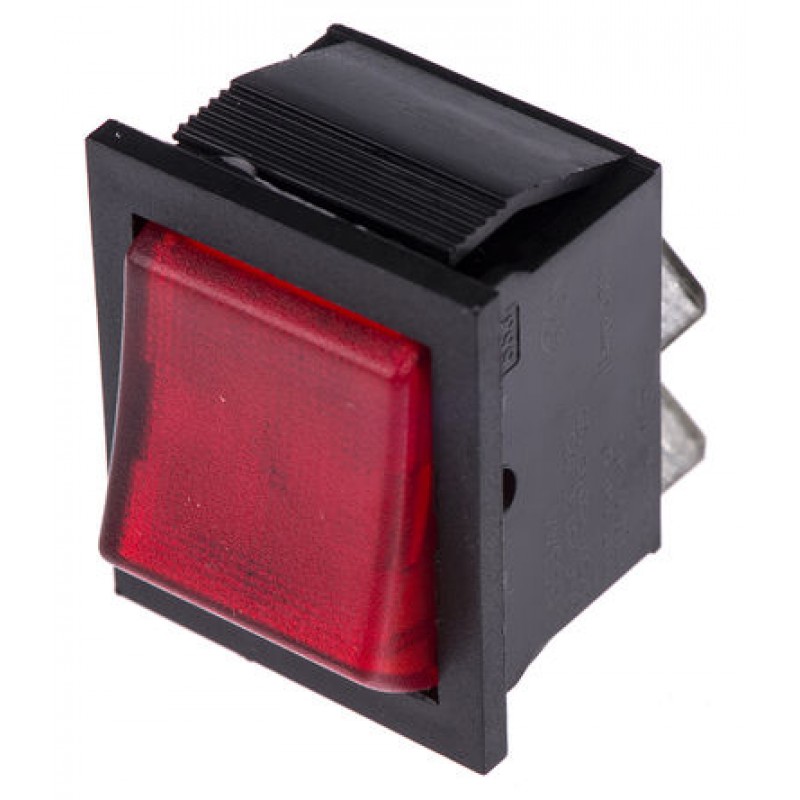

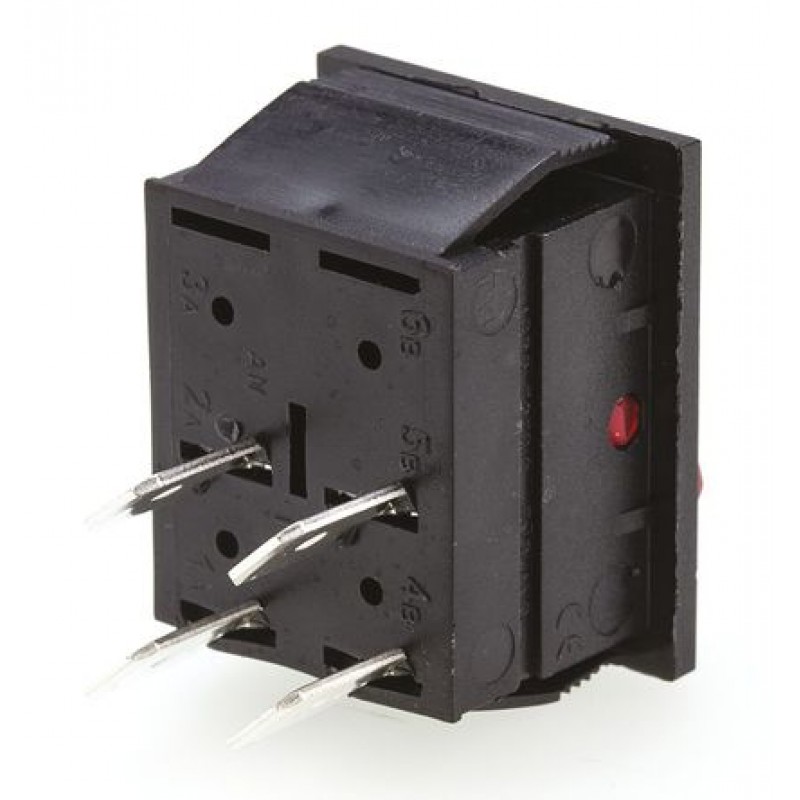

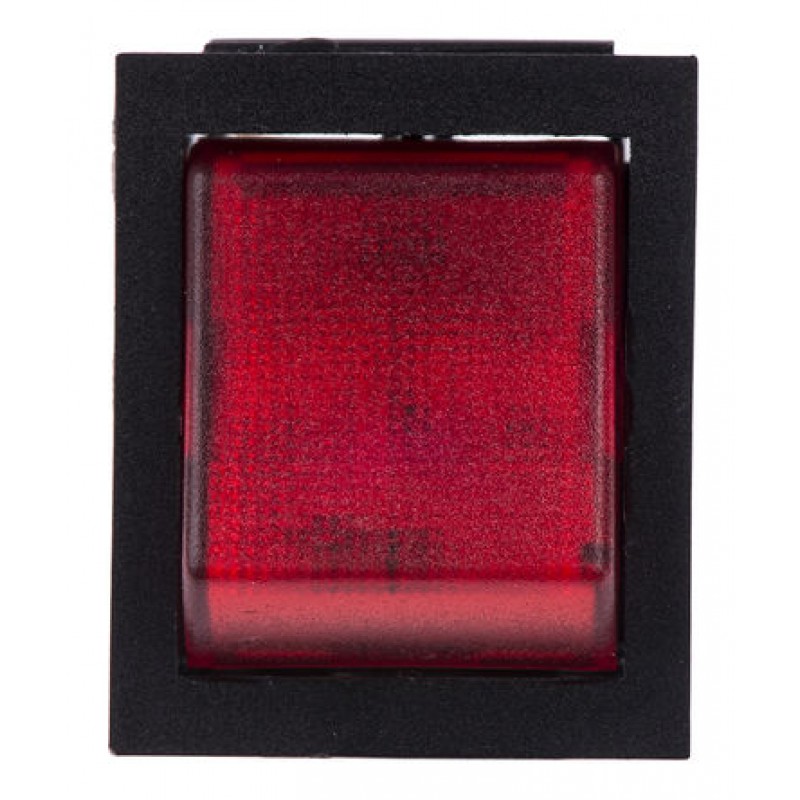

Illuminated Red DPST Rocker Switch, On-Off, 16 A@ 250 V ac 27.2mm 22.2mm
Product Code: C1353AANAB
Availability: In Stock
Availability: In Stock
$8.69
Ex Tax: $8.69
Ex Tax: $8.69
Product Details
Smooth Rocker Switches
Single and double pole switches available in black or white bodies either illuminated or non-illuminated
Red or green illumination suitable for 240Vac operation
Silver alloy contacts, moulded in Nylon 6.6 and with a silk texture finish
Connection via .250in push-on receptacles
Dielectric strength 2kV
Contact rating 16(A) @ 250Vac
Insulation Resistance ≥1000MΩ
5 x 104 ops
Suitable hole cutters; single-pole (stock no. 614-334); double-pole (stock no. 614-328)
| Contact Configuration | Contact Resistance (mΩ) | Illumination | Inrush Rating (A) | Stock no. |
| SPST | 10 | Yes | 24 | 197-7759 |
| SPST | 10 | Yes | 24 | 197-7765 |
| SPST | 10 | Yes | 24 | 197-7771 |
| SPST | 10 | Yes | 24 | 197-7787 |
| DPST | 10 | Yes | 150 | 197-7793 |
| DPST | 10 | Yes | 150 | 197-7800 |
| DPST | 10 | Yes | 150 | 197-7816 |
| DPST | 10 | Yes | 150 | 197-7822 |
| SPST | 10 | No | 150 | 197-7838 |
| SPDT | 10 | No | 36 | 197-7844 |
| SPDT | 10 | No | 36 | 197-7850 |
| SPDT (on)-on | 10 | No | 36 | 197-7866 |
| SPDT on-off-on | 10 | No | 36 | 197-7872 |
| DPST | 10 | No | 150 | 197-7894 |
| DPDT | 10 | No | 36 | 197-7901 |
| DPDT | 10 | No | 36 | 197-7917 |
| DPDT centre off | <100 | No | - | 533-2920 |
| DPDT on-on momentary 1 side | <100 | No | - | 533-2936 |
| SPDT (on)-off-(on) | 10 | No | 36 | 228-3869 |
| DPDT (on)-off-(on) | 10 | No | 36 | 228-3881 |
Approvals
ENEC, UL recognised component, CSA certified
27.2 to 29.4mm Height Panel Cut Out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 22.2mm | |
| Panel Cut Out Height | 27.2mm | |
| Contact Current Rating | 16 A@ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 27.2 x 22.2mm |
