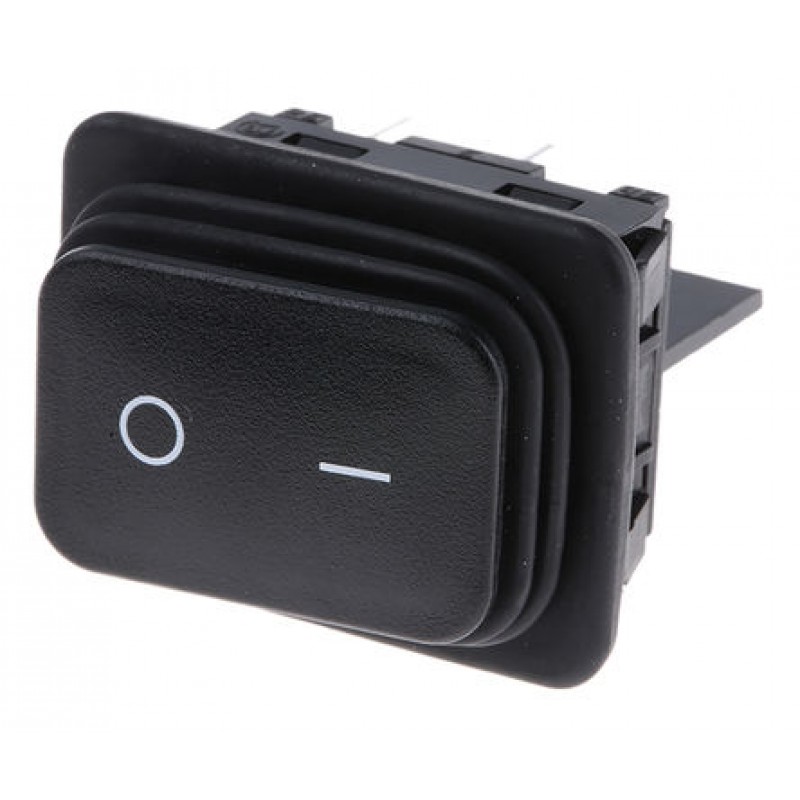

IP65 Black DPST Rocker Switch, On-Off, 20 A @ 250 V ac +55°C -30°C 30.2mm 22mm
   0 reviews  |  Write a review
Product Code: 1932.3112
Availability: In Stock
$9.09
Ex Tax: $9.09

Product Details

The 1930 rocker switches have silver contacts with DPNO, DPST or DPDT switching formats that includes 2 or 3 position switching, on-off or center off (on-off-on) latching action contacts.

Waterproof, IP65 rated
High current rating, up to 20A
High inrush current (capacitive) up to 120A, stock number 741-0836 up to 100A
Contact distance ≥3mm
Operating force 3 to 8N

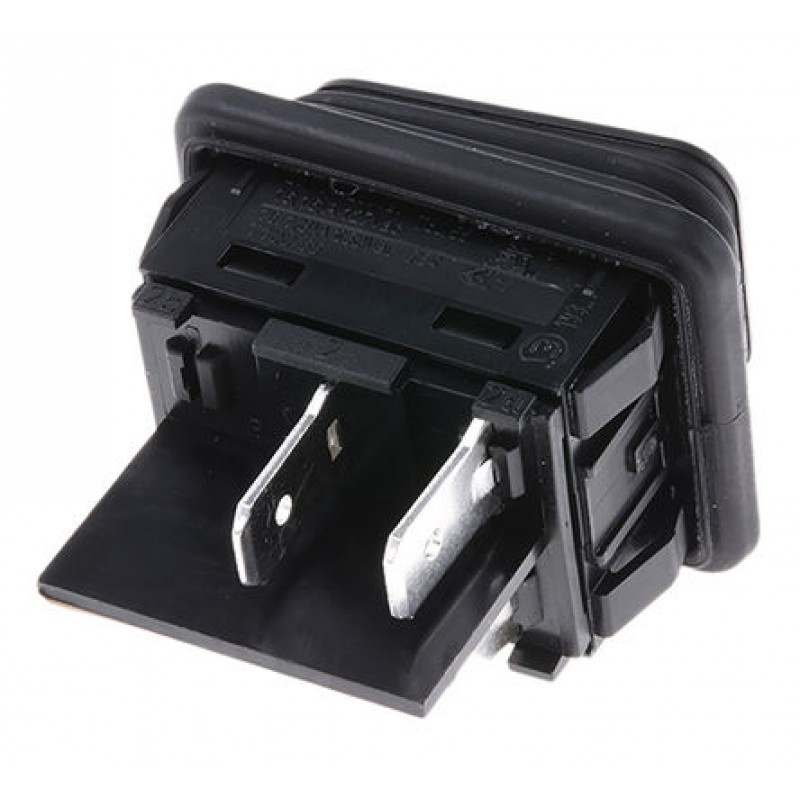

Electrical connection via 6.3mm Faston/Quick Connect style tab terminals
UL 94 V-2 flammability rated

Note

The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC



Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Contact Configuration DPST
Switch Operation On-Off
Panel Cut Out Width 22mm
Panel Cut Out Height 30.2mm
Contact Current Rating 20 A @ 250 V ac
Actuator Colour Black
Mounting Type Panel
IP Rating IP65
Terminal Type Quick Connect
Legend Text On (symbol); Off (symbol)
Case Material Polyamide
Minimum Operating Temperature -30°C
Legend Text Colour White
Maximum Operating Temperature +55°C
Panel Cut Out Size 30.2 x 22mm
Contact Material Silver
Operating Temperature Range -30 → +55°C
Mechanical Life 50000Operations
Contact Resistance 100mΩ
