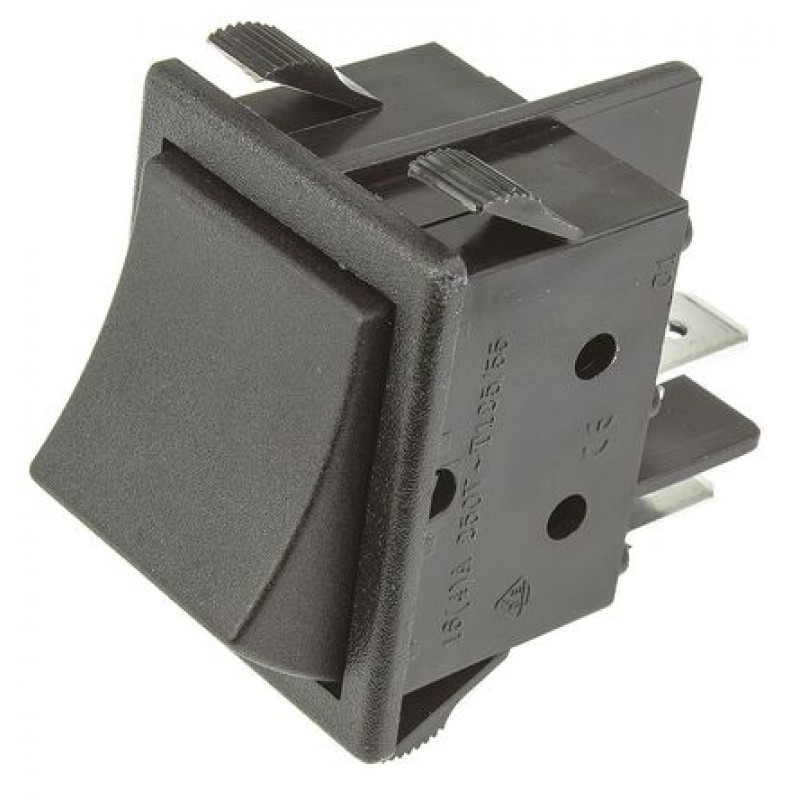

Black DPST Rocker Switch, On-Off, 16 A @ 250 V ac +65°C -20°C 30.2mm 22mm
Product Code: RG32F2BBBNN
Availability: In Stock
Availability: In Stock
$6.96
Ex Tax: $6.96
Ex Tax: $6.96
Product Details
Double Pole
Double pole rocker switch in black or grey and a number of functions
Rugged construction for high current applications
Single and double throw available
Durable silver alloy contacts for up to 16A switching

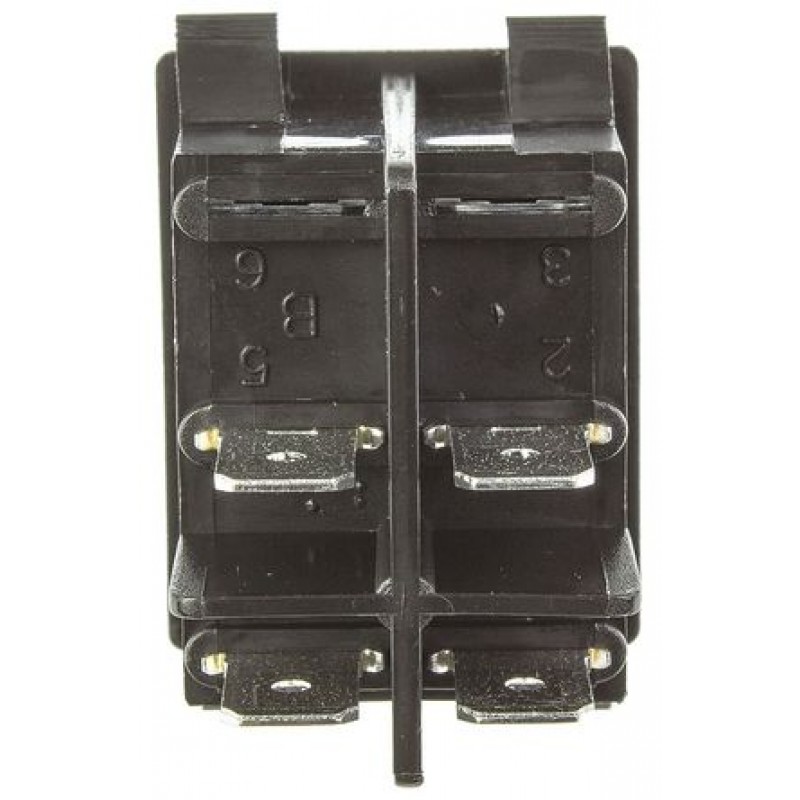

Connection via .250in faston terminals
Nylon 66 94 V-2 actuator
| Dimensions | |||||
| Height (mm) | Width (mm) | Depth (mm) | Depth Behind Panel (mm) | Panel Cut-out (mm) | Max. Panel Thickness (mm) |
| 32 | 25 | 32.65 | 27 | 30 x 22 | 2 - 3 |
Approvals
VDE; UL; CSA
30 x 22mm & 30 x 11mm panel cut out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 22mm | |
| Panel Cut Out Height | 30.2mm | |
| Contact Current Rating | 16 A @ 250 V ac | |
| Actuator Colour | Black | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +65°C | |
| Contact Material | Silver Alloy | |
| Panel Cut Out Size | 30.2 x 22mm | |
| Mechanical Life | 50000Operations | |
| Contact Resistance | 20mΩ | |
| Operating Temperature Range | -20 → +65°C |
