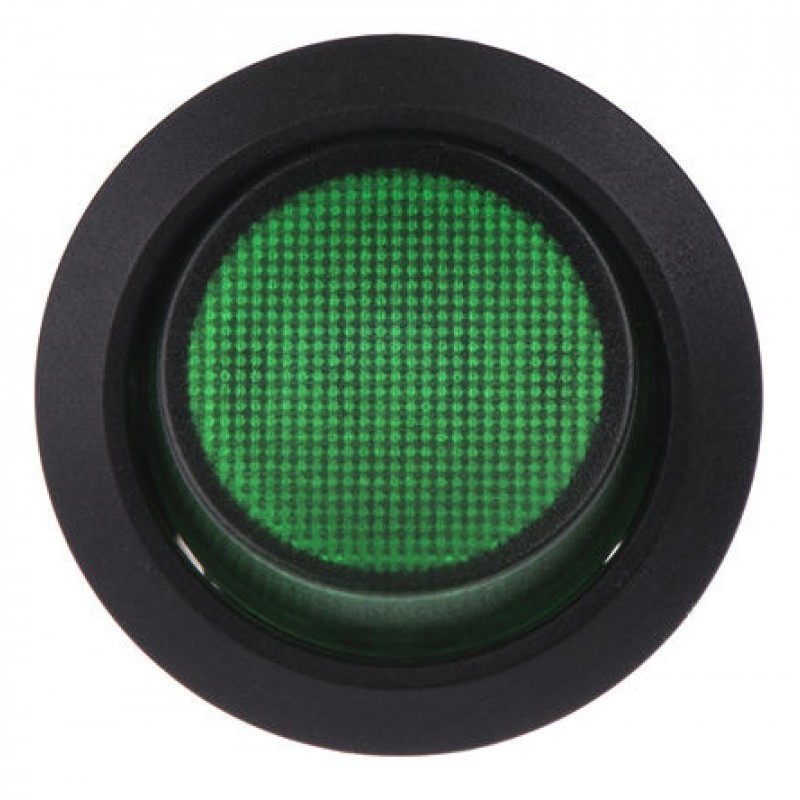

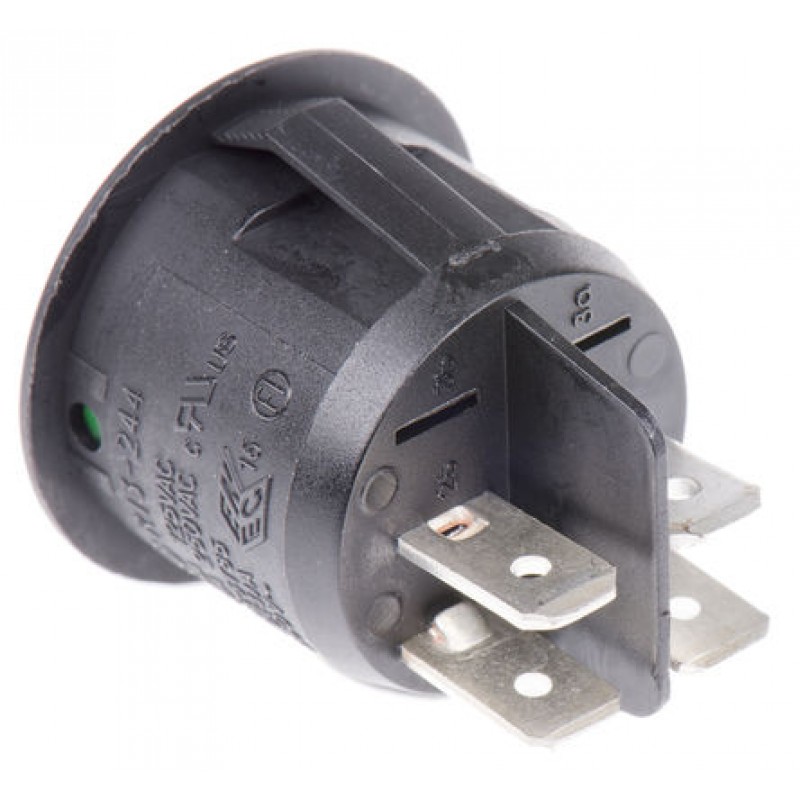

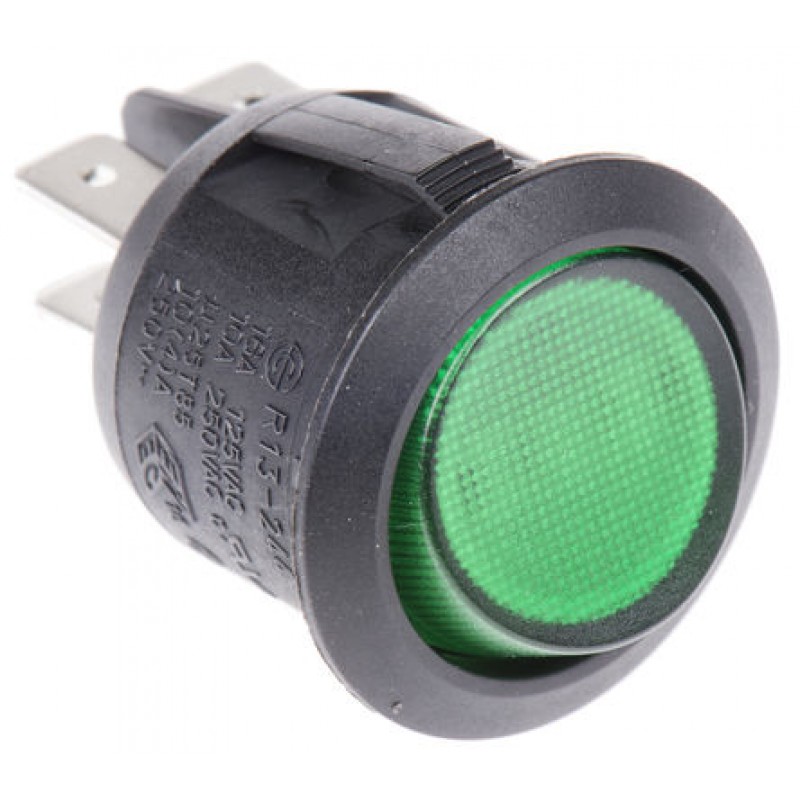

IP40 Illuminated Green DPST Rocker Switch, On-Off, 6 A @ 250 V ac 20.2mm
Product Code: 3244BNAB
Availability: In Stock
Availability: In Stock
$7.98
Ex Tax: $7.98
Ex Tax: $7.98
Product Details
Circular Rocker/ Round Switches
Single hole snap-in mounting
Choice of standard or neon illuminated, black or white in colour
LED illumination on paddle version
Single pole on-off
Anti-rotation/positioning lug
Panel Cut-out: 20.20mm Dia.
Approvals
UL; CSA; VDE
Circular Actuator
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Diameter | 20.2mm | |
| Contact Current Rating | 6 A @ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| IP Rating | IP40 | |
| Terminal Type | Solder | |
| Panel Cut Out Size | 20.2 (Dia.)mm | |
| Contact Material | Silver Alloy | |
| Case Material | Nylon 66 | |
| Contact Resistance | 100mΩ |
