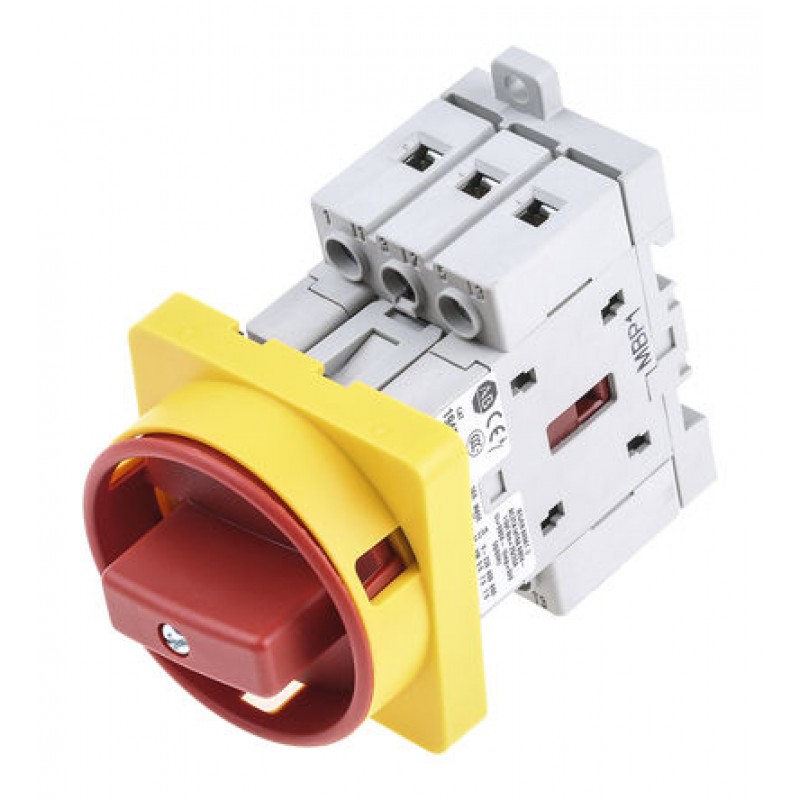

3 Pole Base, DIN Rail Mount Non-Fused Switch Disconnector, 16 A, 7.5 hp, 7.5 kW, IP66
Product Code: 194E-A16-1753-4N
Availability: In Stock
Availability: In Stock
$30.87
Ex Tax: $30.87
Ex Tax: $30.87
Product Details
Switch Disconnectors
These narrow format 194E series switch disconnectors are simple to install in limited panel space, they are easily modified and versatile to apply. They have finger safe design to IP20 in all live parts and the terminals, which provide self-centring cable guides. Rated powers of 5.5kW in AC3 and 7.5kW in AC23A categories (400V) can be switched on a panel surface of only 36mm wide. Rated current is 16A at 690Vac (AC1 and AC21A). They are CE marked, cUL approved, and fulfil the requirements of most international standards of operational safety and reliability. Snap-on modular accessories are available.

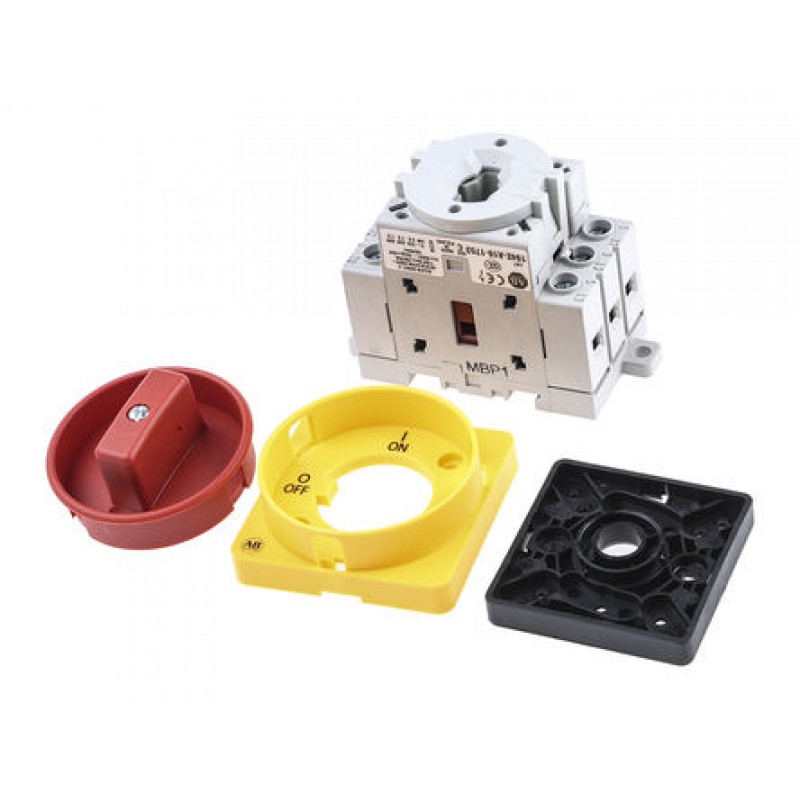

Three-pole versions are complete with handle
Six pole versions are switch bodies only, for operating handle order stock no. 261-8259
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 3 | |
| Maximum Current | 16 A | |
| Mounting Type | Base, DIN Rail | |
| Power Rating | 7.5 hp, 7.5 kW | |
| IP Rating | IP66 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 690 V ac | |
| Electrical Phase | 3 | |
| Switch Rating | 20 kA | |
| Length | 70mm | |
| Width | 36mm | |
| Depth | 80mm | |
| Maximum Operating Temperature | +60°C | |
| Handle Colour | Red/Yellow | |
| Terminal Type | Wire Lead | |
| Minimum Operating Temperature | -25°C |
