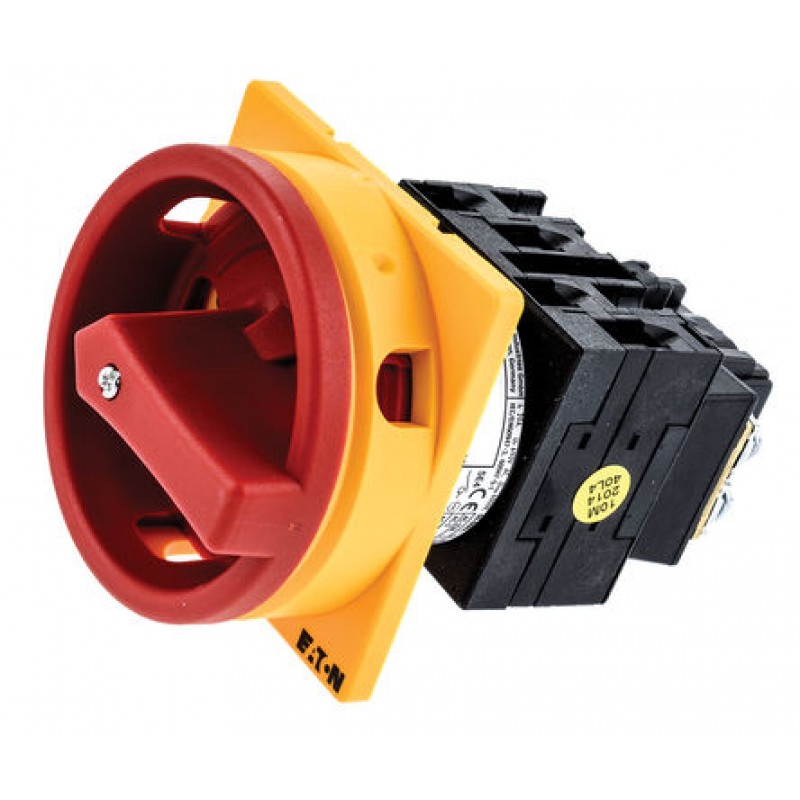

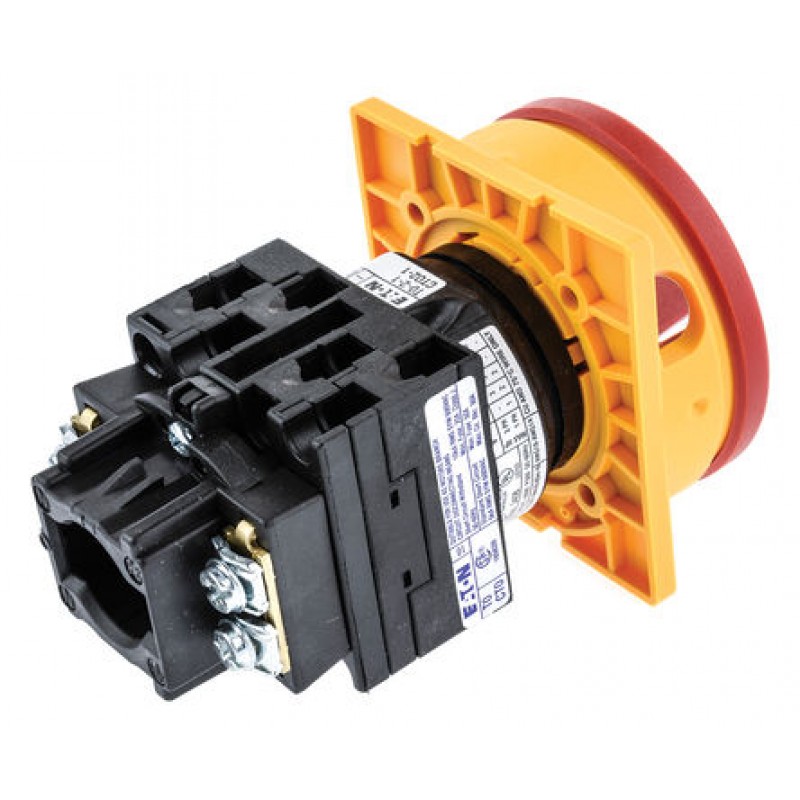

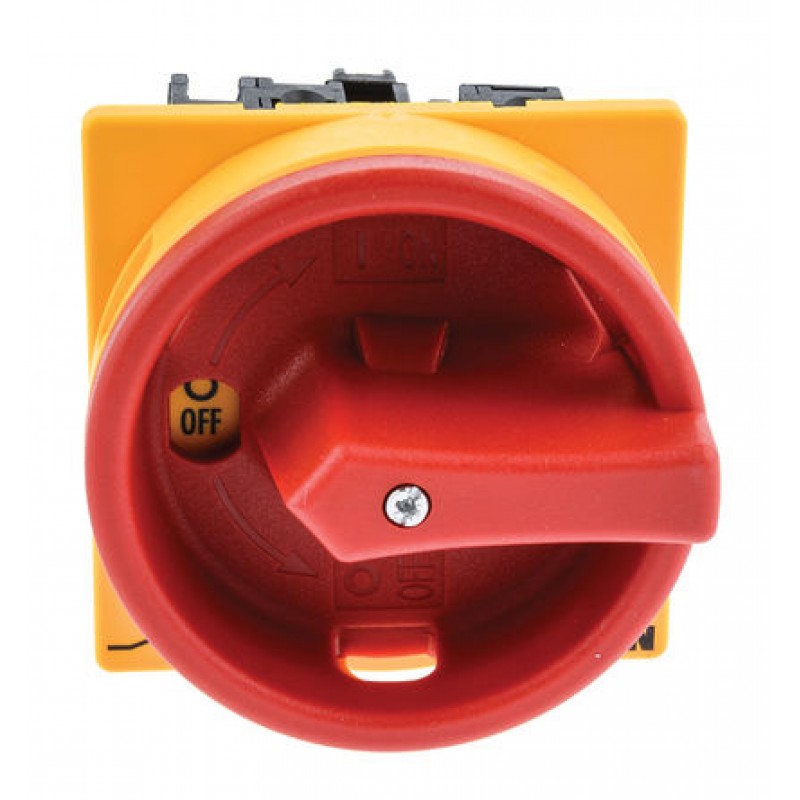

3 Pole Flush Mount Non-Fused Switch Disconnector, NO, 20 A, 6.5 kW, IP65
Product Code: T0-2-1/EA/SVB
Availability: In Stock
Availability: In Stock
$28.69
Ex Tax: $28.69
Ex Tax: $28.69
Product Details
Panel Door Mounted Switch Disconnector
Padlockable in OFF position, up to 3 padlocks and non-locking versions
Ingress protection to IP65
2 and 3 pole versions have built in neutral and earth connections
3 pole switches ('P' type only) accept add-on switched neutral and auxiliary contacts (except 20A switches) – see accessories (RS 219-1439 typical)
Rated operating voltage: 690 Vac
Switching power quoted for 380 - 440 Vac
Approvals
UL, CSA
Standards
IEC (EN60) 947, IEC (EN60) 204
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 3 | |
| Maximum Current | 20 A | |
| Mounting Type | Flush | |
| Normal State Configuration | NO | |
| Power Rating | 6.5 kW | |
| IP Rating | IP65 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 440 V ac | |
| Auxiliary Contacts Available | Yes | |
| Electrical Phase | 3 | |
| Switch Rating | 320 A | |
| Length | 90mm | |
| Width | 75mm | |
| Depth | 50mm | |
| Throw Configuration | Single | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw | |
| Handle Colour | Red |
