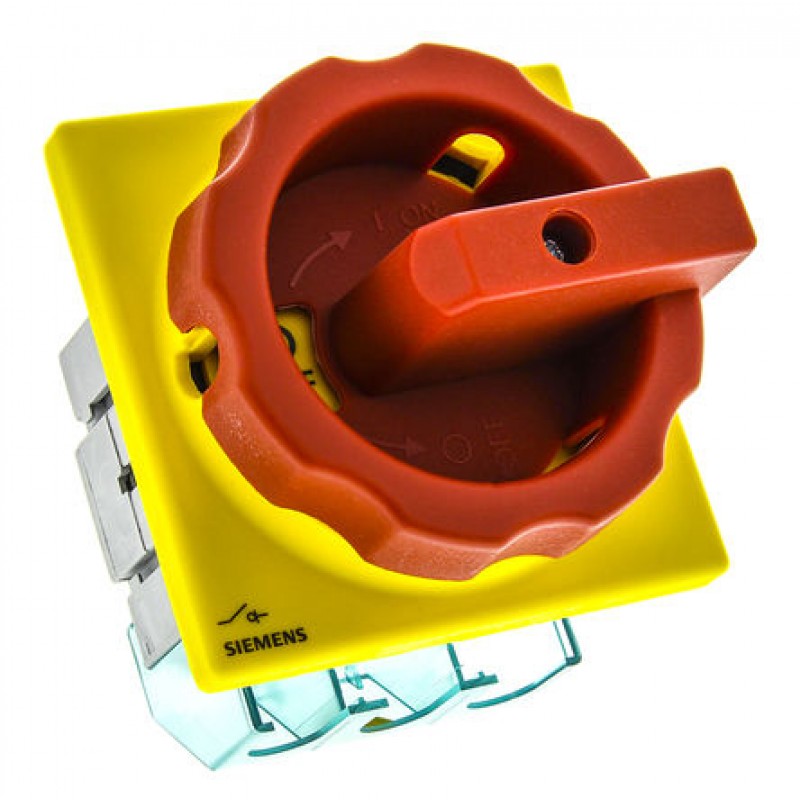

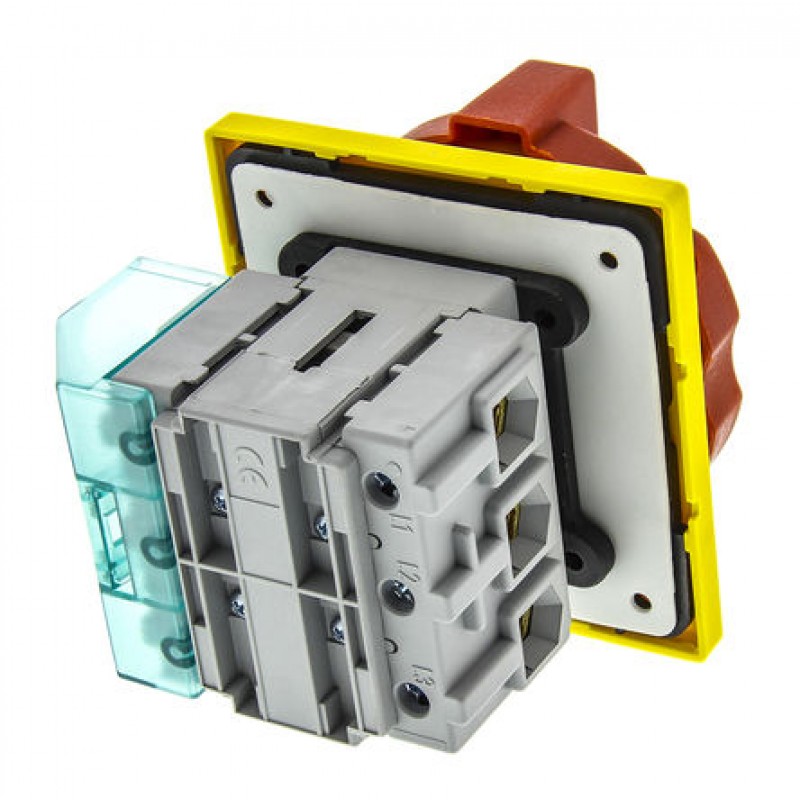

3 Pole Front Panel Mount Non-Fused Switch Disconnector, 63 A, 22 kW, IP65
Product Code: 3LD25040TK
Availability: In Stock
Availability: In Stock
$44.97
Ex Tax: $44.97
Ex Tax: $44.97
Product Details
Sentron LD Disconnector
Main and emergency stop switch
Handle available in black or red/yellow (emergency stop)
Accepts 3 padlocks
Front panel seal IP65
Side feed with cover
Screw or DIN rail assembly
| Rating 380/400V 50-60Hz | Switch current | Handle Colour | Man. Part number | Panel size |
| 7.5 kW | 16 A | Black | 3LD2003-0TK51 | 67 x 67 mm |
| Red/Yellow | 3LD2003-0TK53 | 67 x 67 mm | ||
| 9.5 kW | 25 A | Black | 3LD2103-0TK51 | 67 x 67 mm |
| Red/Yellow | 3LD2103-0TK53 | 67 x 67 mm | ||
| 11.5 kW | 32 A | Black | 3LD2203-0TK51 | 67 x 67 mm |
| Red/Yellow | 3LD2203-0TK53 | 67 x 67 mm | ||
| 22 kW | 63 A | Black | 3LD2504-0TK51 | 90 x 90 mm |
| Red/Yellow | 3LD2504-0TK53 | 90 x 90 mm | ||
| 37 kW | 100 A | Black | 3LD2704-0TK51 | 90 x 90 mm |
| Red/Yellow | 3LD2704-0TK53 | 90 x 90 mm | ||
| 45 kW | 125 A | Black | 3LD2804-0TK51 | 90 x 90 mm |
| Red/Yellow | 3LD2804-0TK53 | 90 x 90 mm |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 3 | |
| Maximum Current | 63 A | |
| Mounting Type | Front Panel | |
| Power Rating | 22 kW | |
| IP Rating | IP65 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 690 V ac | |
| Electrical Phase | 3 | |
| Switch Rating | 6000 V | |
| Length | 90mm | |
| Width | 90mm | |
| Depth | 59mm | |
| CAD Drawing | 3D CAD Model | |
| Maximum Operating Temperature | +55°C | |
| Handle Colour | Red | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw |
