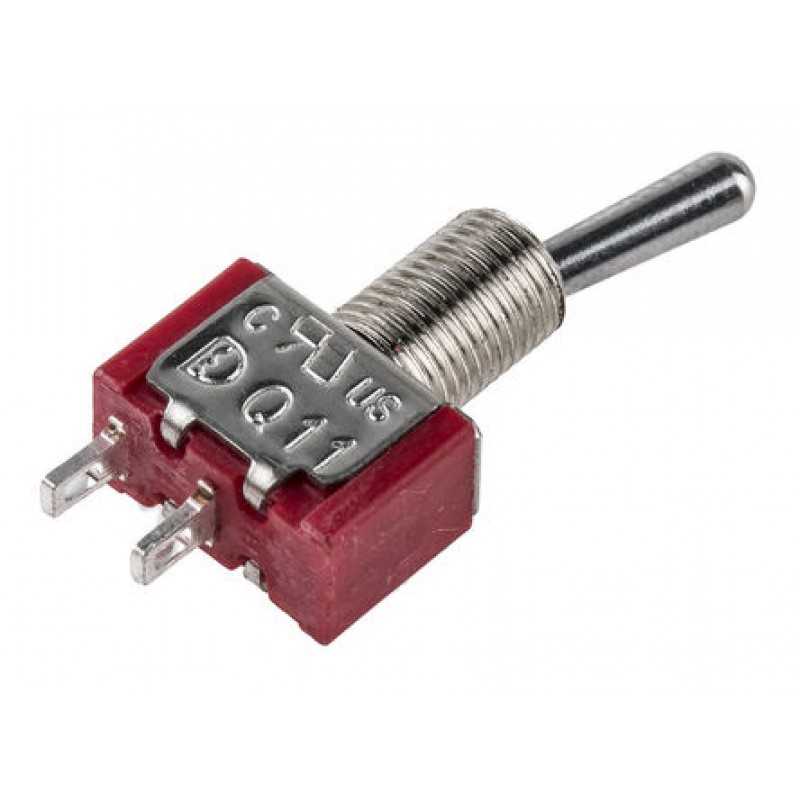

Toggle Switch SPST On-Off, 5 (ac) A, 5 (dc) A, Panel Mount
Product Code: MS9T1B7M1QNS
Availability: In Stock
Availability: In Stock
$6.45
Ex Tax: $6.45
Ex Tax: $6.45
Product Details
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Contact Current Rating | 5 A @ 28 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Panel Cut Out Width | 6.86mm | |
| Panel Cut Out Height | 12.7mm | |
| Actuator Length | 10.4mm | |
| Actuator Material | Chrome Plated Brass | |
| Contact Resistance | 10mΩ | |
| Mechanical Life | 40000Cycles | |
| Minimum Operating Temperature | -30°C | |
| Panel Cut Out Size | 12.7 x 6.86mm | |
| Contact Material | Silver Gold Plated Brass | |
| Operating Temperature Range | -30 → +85°C | |
| Maximum Operating Temperature | +85°C |
