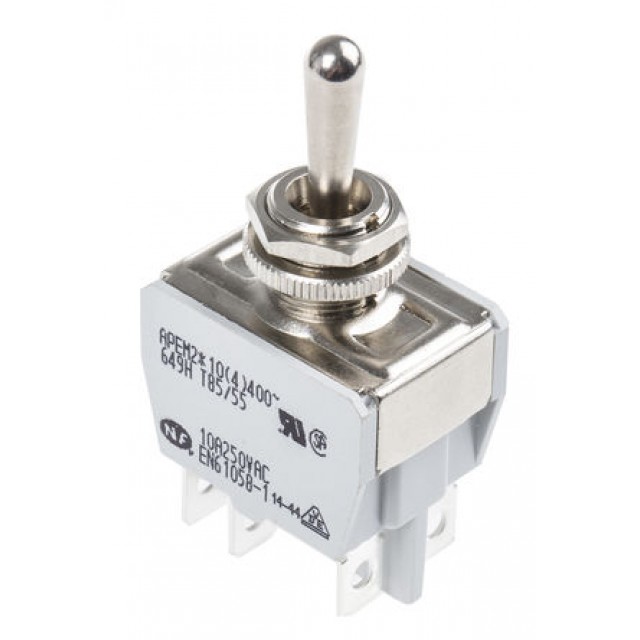

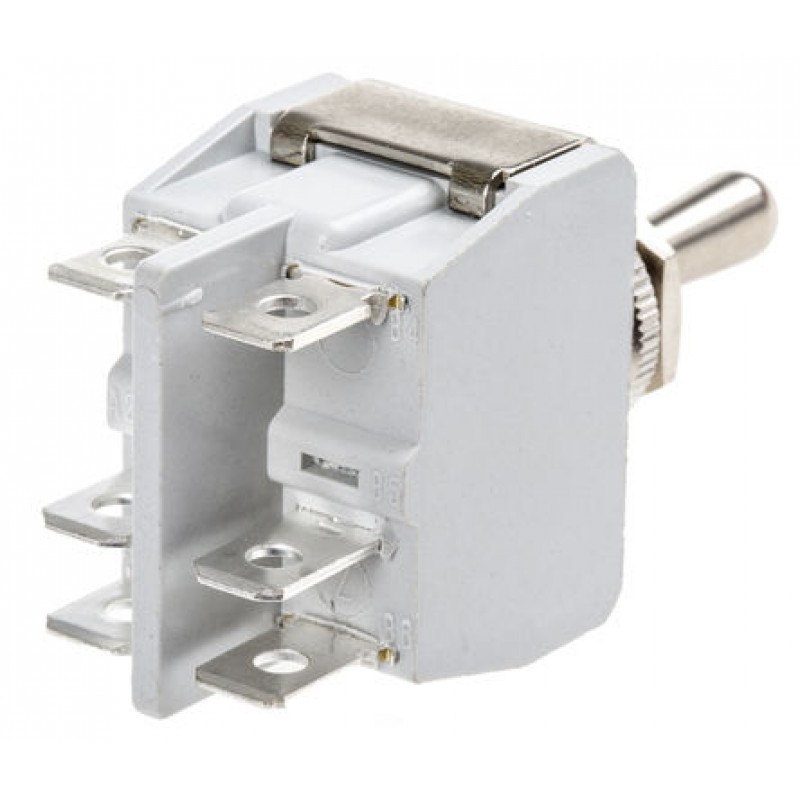

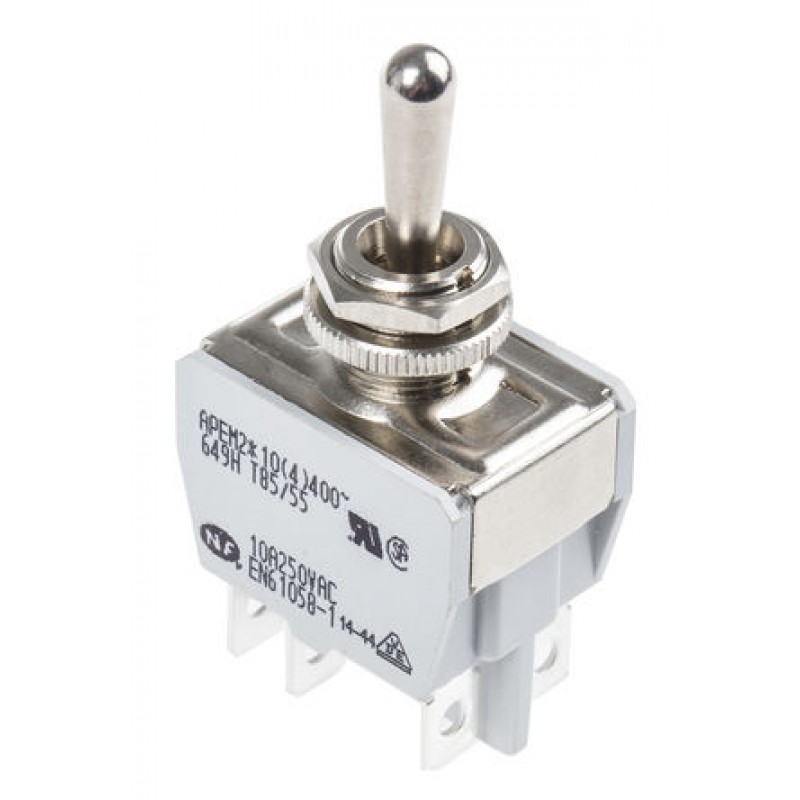

Toggle Switch DP On-Off-On, 10 A@ 24 V dc, Panel Mount
Product Code: 649H/2
Availability: In Stock
Availability: In Stock
$11.98
Ex Tax: $11.98
Ex Tax: $11.98
Product Details
Toggle Switches, Std, 15A Metal Lever
Single and double pole switches with a choice of flat insulated or nickel plated brass levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Note
For biased switches '(on)' refers to momentary 'on' position
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DP | |
| Switch Operation | On-Off-On | |
| Contact Current Rating | 10 A@ 24 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder, Tab | |
| Actuator Length | 17.5mm | |
| Actuator Material | Nickel Plated Brass | |
| Contact Resistance | 10mΩ | |
| Operating Temperature Range | -20 → +55°C | |
| Maximum Operating Temperature | +55°C | |
| Contact Material | Silver Nickel Alloy | |
| Minimum Operating Temperature | -20°C |
