2 positions 90° Rotary Switch, 600 V ac/dc, 0.55 (dc) A, 6 (ac) A, Handle, Stay Put
Product Code: B5AK123B5
Availability: In Stock
Availability: In Stock
$32.99
Ex Tax: $32.99
Ex Tax: $32.99
Product Details

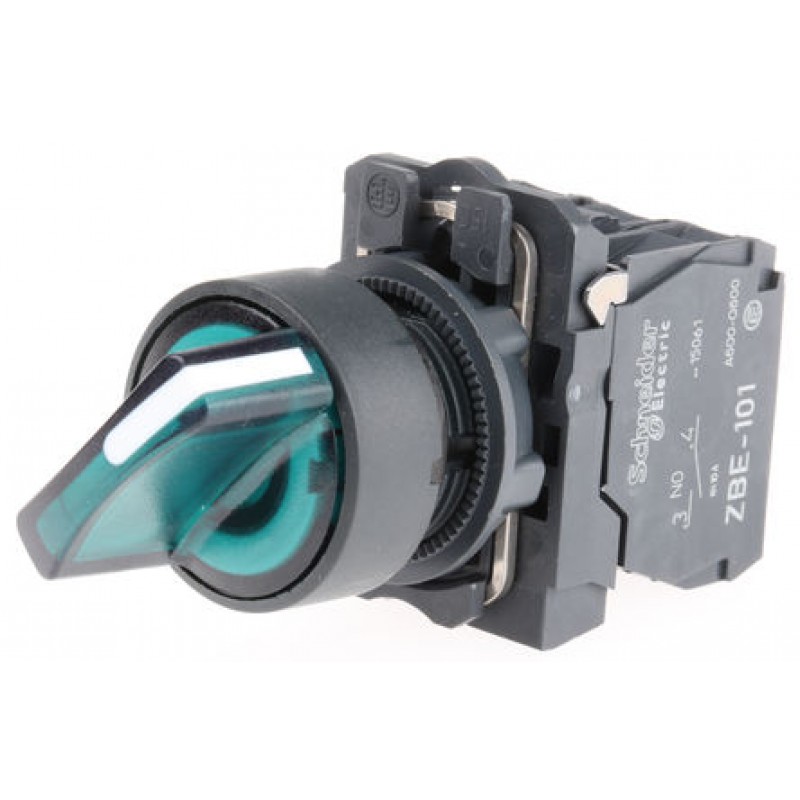

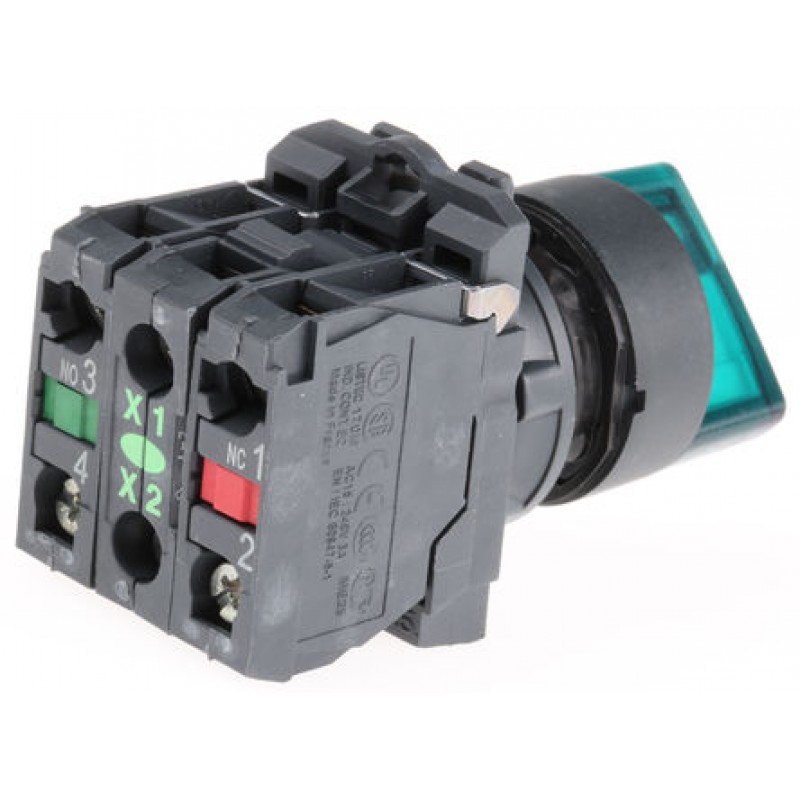

Illuminated Selector Switch with Integral LED
Complete unit, green switch
1N/O + 1N/C contact
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Normal State Configuration | NO/NC | |
| Maximum Current | 0.55 (dc) A, 6 (ac) A | |
| Maximum Voltage | 600 V ac/dc | |
| Number of Positions | 2 | |
| Terminal Type | Screw Clamp | |
| Angle of Throw | 90° | |
| Length | 41.5mm | |
| Width | 30mm | |
| Depth | 70mm | |
| Actuator Type | Handle, Stay Put | |
| Dimensions | 41.5 x 30 x 70 mm |
