• Illuminated Red SPST Rocker Switch, On-Off, 16 A @ 250 V ac +65°C -20°C 30.48mm 11mm

  • Illuminated Red SPST Rocker Switch, On-Off, 16 A @ 250 V ac +65°C -20°C 30.48mm 11mm

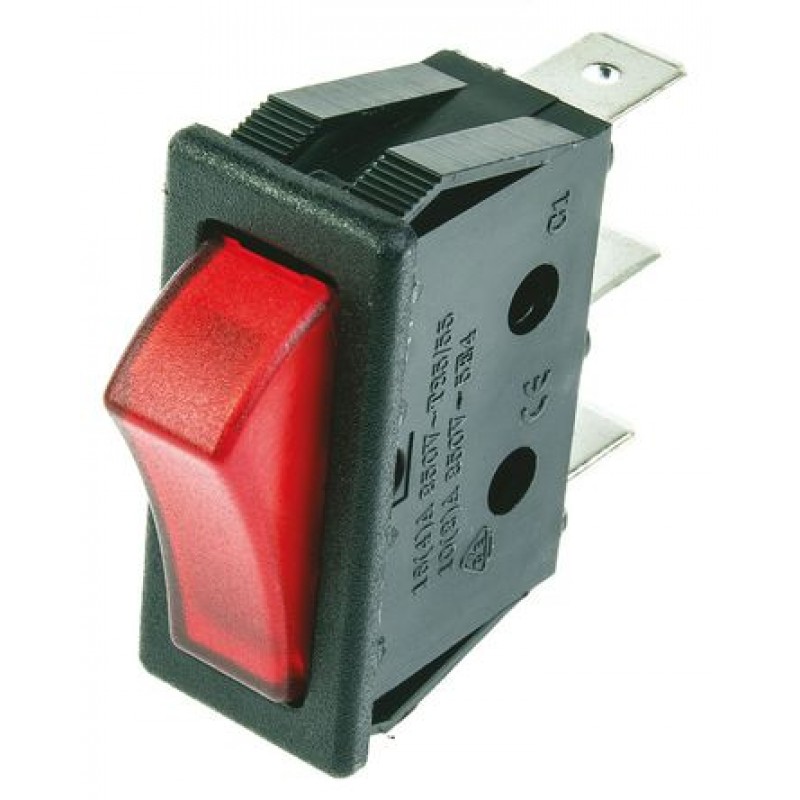

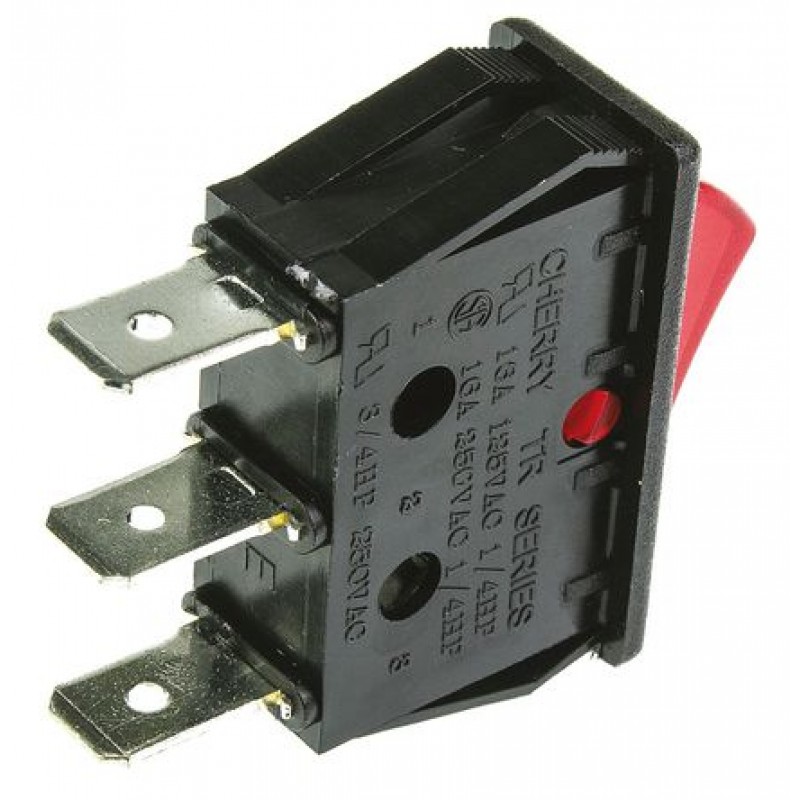

Illuminated Red SPST Rocker Switch, On-Off, 16 A @ 250 V ac +65°C -20°C 30.48mm 11mm
   0 reviews  |  Write a review
Product Code: TRG22F2BBREN
Availability: In Stock
$6.66
Ex Tax: $6.66
Product Details

TR Series Power Rocker Switch

16A switching in 11mm wide package
Lighted and non-lighted versions
Available in a wide variety of colors
Double-throw and three-position versions available
Fits industry-standard cut-outs
Mechanical life: min. 50,000 operation



30 x 22mm & 30 x 11mm panel cut out




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Contact Configuration SPST
Switch Operation On-Off
Panel Cut Out Width 11mm
Panel Cut Out Height 30.48mm
Contact Current Rating 16 A @ 250 V ac
Illuminated Yes
Actuator Colour Red
Mounting Type Panel
Terminal Type Quick Connect
Contact Resistance 20mΩ
Mechanical Life 50000Operations
Minimum Operating Temperature -20°C
Panel Cut Out Size 30.48 x 11mm
Contact Material Silver Alloy
Operating Temperature Range -20 → +65°C
Maximum Operating Temperature +65°C
