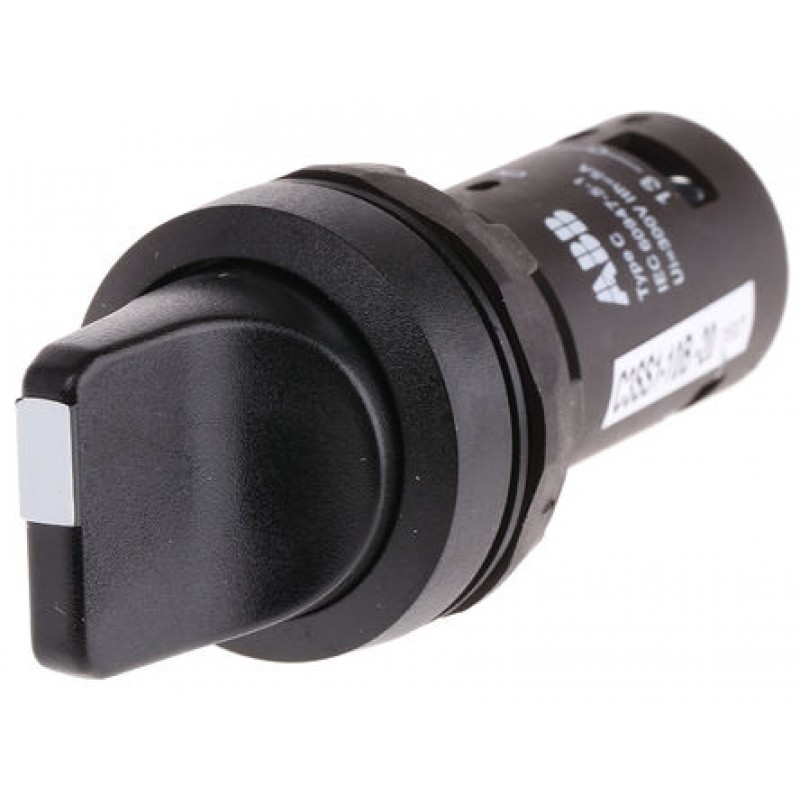

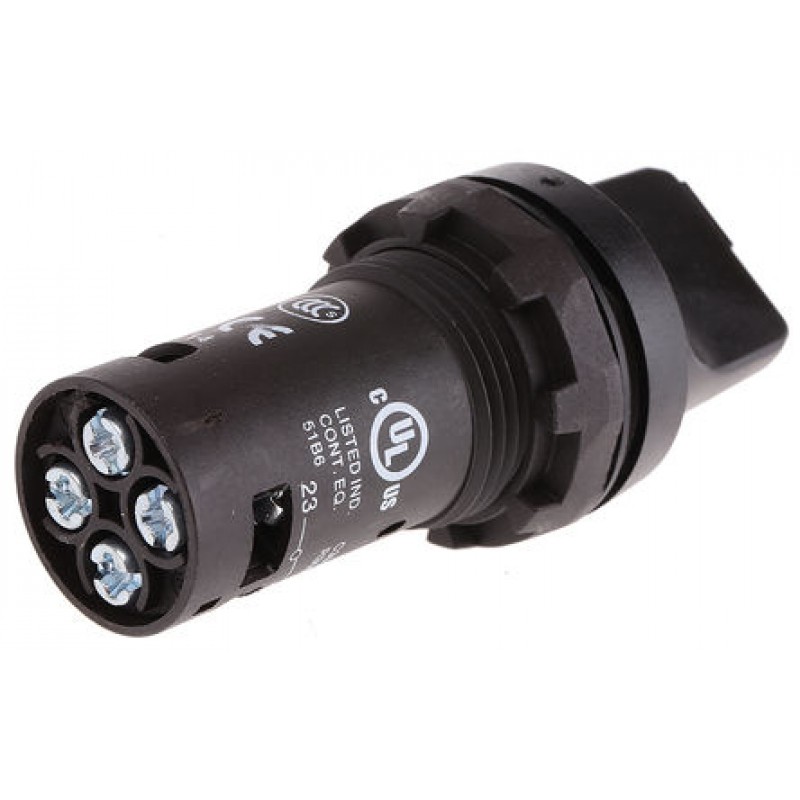

3 positions Rotary Switch, 240 V dc, 250 V dc, 0.22 (dc) A, 1.5 (ac) A, Knob, Stay Put
   0 reviews  |  Write a review
Product Code: 3SS1-10B-20
Availability: In Stock
$19.98
Ex Tax: $19.98
Product Details

Non Illuminated Selector Switch - 3 Position Maintained (ABC)

IP66 rated for harsh environments
Temperature range - 25 to + 70°C
22.5mm hole mounting



http://uk.rs-online.com/largeimages/L479335-01.gif



22.5mm Compact Range

A comprehensive range of components for the user who wants a reliable and cost-effective solution to meet their needs.

Electrical Characteristics
AC-15 application: DC - 13 application
120Vac 1.5A 24Vdc 0.3A
240Vac 1A 125Vdc 0.2A



Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Normal State Configuration 2NO
Maximum Current 0.22 (dc) A, 1.5 (ac) A
Maximum Voltage 240 V dc, 250 V dc
Number of Positions 3
Depth 55mm
Actuator Type Knob, Stay Put
Dimensions 30 x 55 mm
