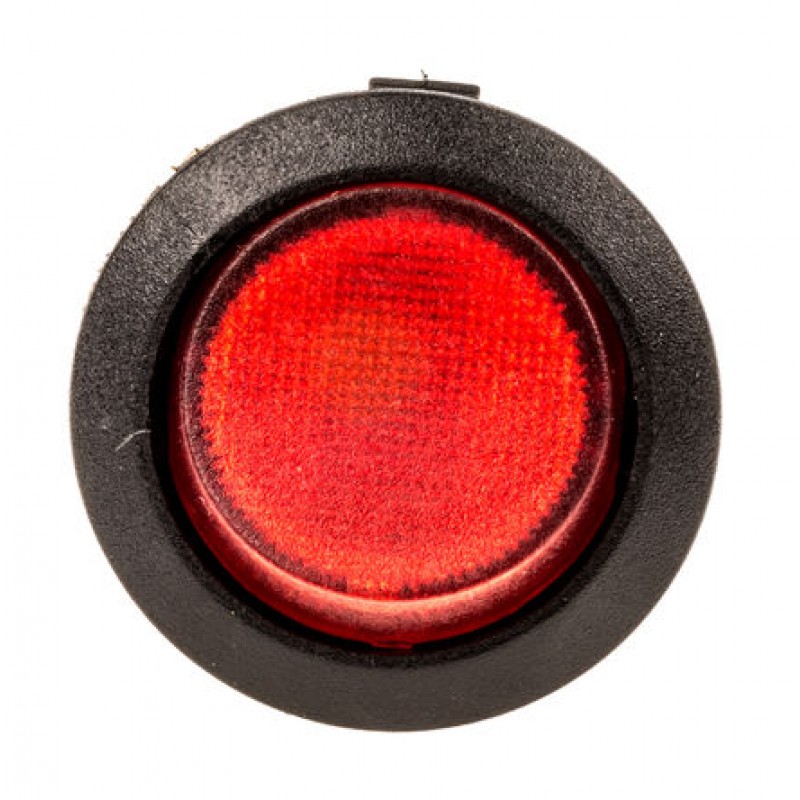

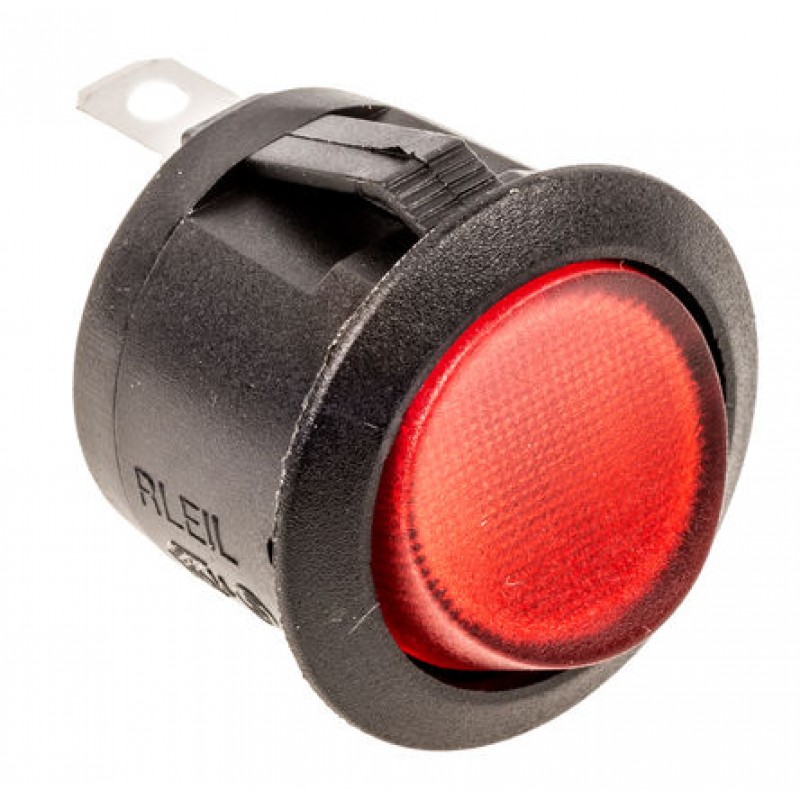

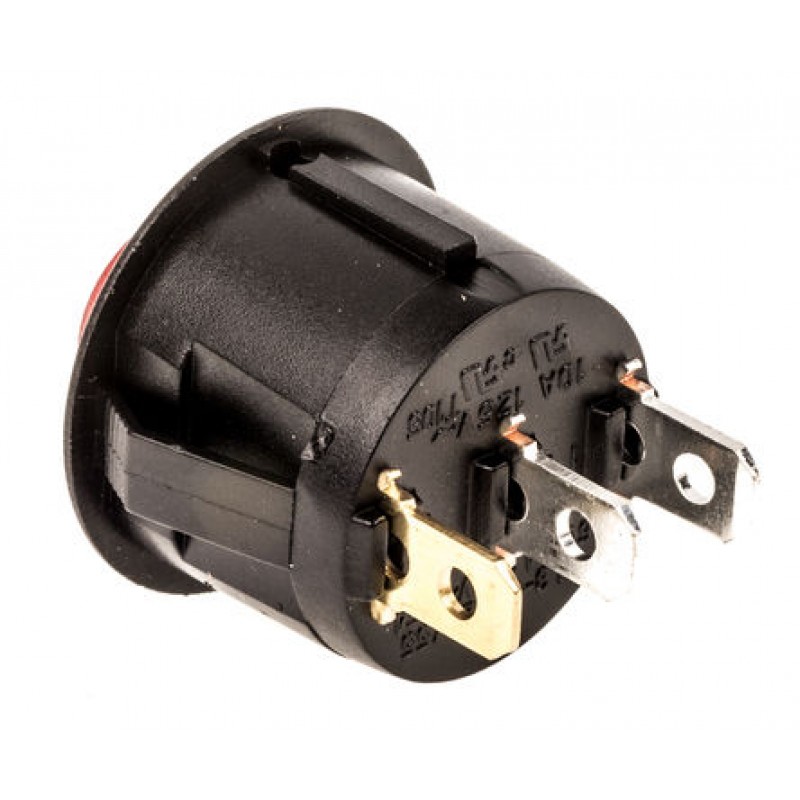

Illuminated Red SPST Rocker Switch, On-Off, 6 A@ 250 V ac +125°C -25°C 19.4mm
   0 reviews  |  Write a review
Product Code: 73-29
Availability: In Stock
$6.84
Ex Tax: $6.84
Product Details

Circular Rocker Illuminated Switches (dc & ac)

Single pole on-off round illuminated rocker switches
Snap-in mounting
Panel cut-out: 19.4mm
Electrical life: 10000 cycles
Insulation resistance 100MΩ min at 500Vdc

Circular Actuator




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Contact Configuration SPST
Switch Operation On-Off
Panel Cut Out Diameter 19.4mm
Contact Current Rating 6 A@ 250 V ac
Illuminated Yes
Actuator Colour Red
Mounting Type Panel
Panel Cut Out Size 19.4 (Dia.)mm
Case Material Nylon
Minimum Operating Temperature -25°C
Contact Resistance 30mΩ
Operating Temperature Range -25 → +125°C
Maximum Operating Temperature +125°C
AC Voltage Rating 250V
Contact Material Silver Nickel Alloy
