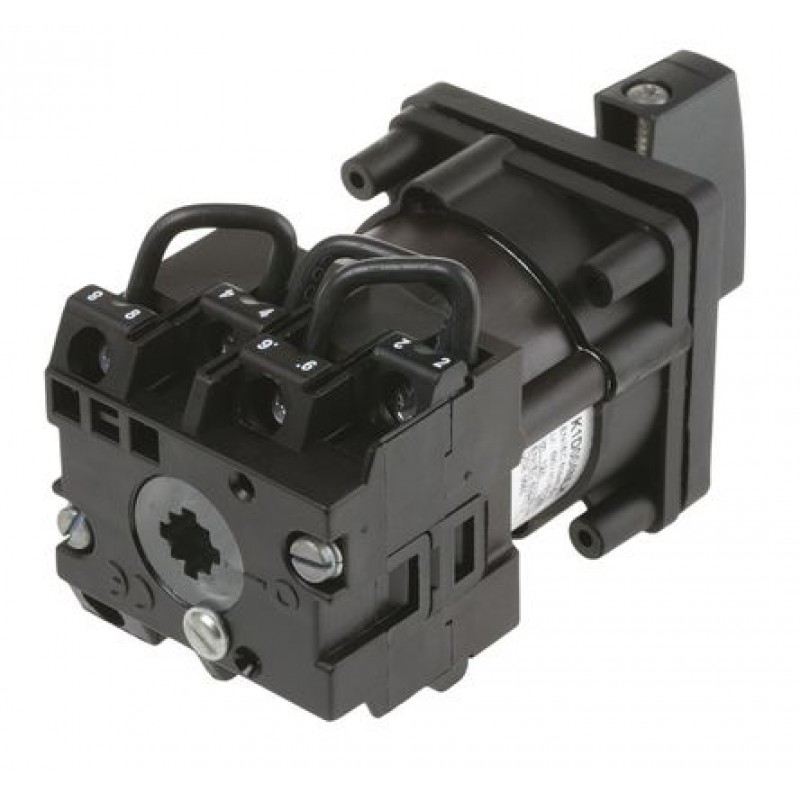

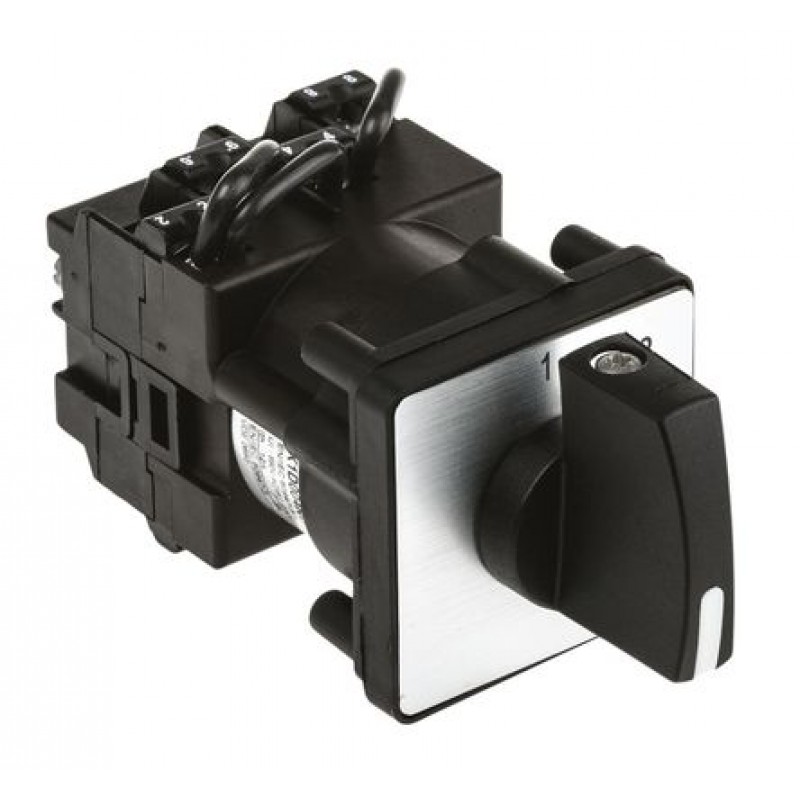

4 positions 45° Rotary Switch, 690 V ac, 5.6 A, Handle, Stay Put
   0 reviews  |  Write a review
Product Code: 1D004NLH
Availability: In Stock
$27.65
Ex Tax: $27.65
Product Details

Industrial Cam Switches

Control circuits (EN60947-5-1) or power circuits (EN60947-3)
IP65 single 22mm diameter fixing hole
Finger-proof terminals
Operating temperature -25 to +55°C
Slow break contacts with positive opening operation
Thermal current rating: 12A free air, 10A enclosed
Nominal voltage: 230V; 400V

AC-15 400V 2A AC-3 400V 3.3A AC-23 400V 4.8A
500V 1A 500V 2.8A 500V 3.8A
UL/CSA 1 phase/240V/0.33hp 3 phase/240V/1 hp



http://uk.rs-online.com/largeimages/L257119-01.gif








Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Pole and Throw Configuration SP
Normal State Configuration 3NO/NC
Maximum Current 5.6 A
Maximum Voltage 690 V ac
Number of Positions 4
Terminal Type Screw Clamp
Angle of Throw 45°
Length 78mm
Width 45mm
Actuator Type Handle, Stay Put
